Description
The TA9 Grips are designed for testing fine wires, thin ropes and narrow bands.
AVAILABLE OPTIONS

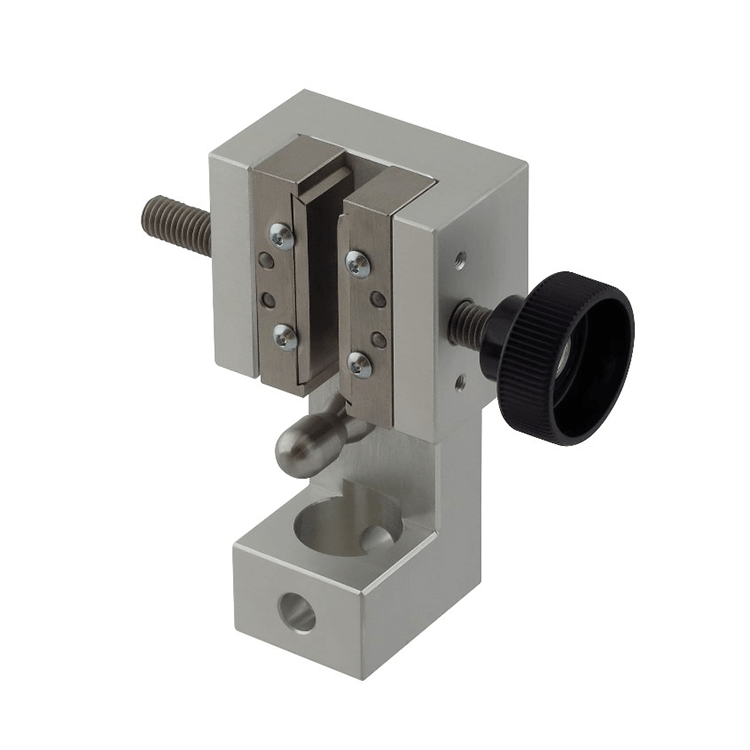

TA9 – Mechanical Wire Grip
Max. load: 2.5 kN
Jaw opening: 0-5 mm
Coupling: Af159 mm or Af20 mm Further couplings on request
Weight per grip w/ jaws: 0.38 kg
Body: Aluminum, anodized
Temperature range: 0°C … +70° Further temperature ranges on request
Scope of delivery: 1 pair incl. carriers for insert jaws. Insert jaws must be ordered separately.

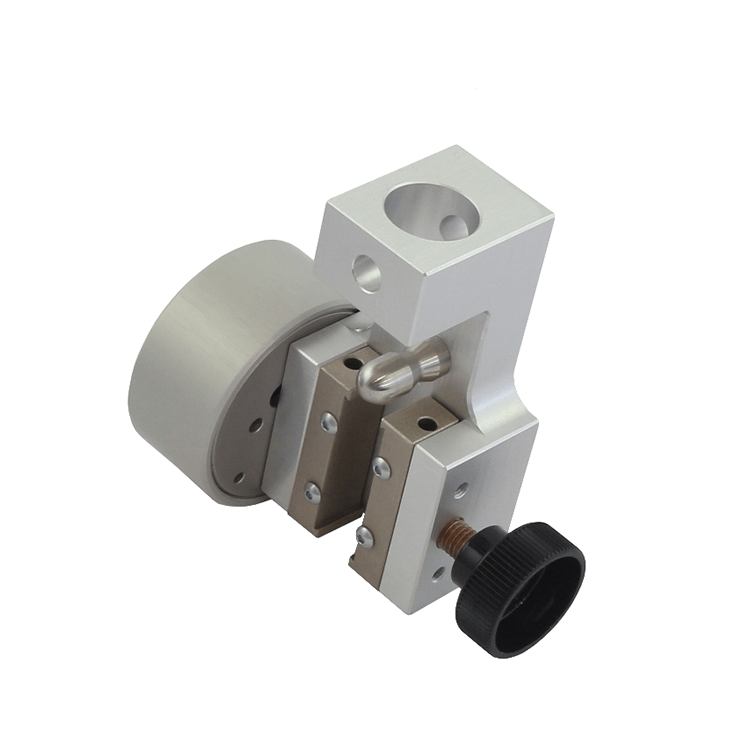

TA9+Ko
Clamping force: 1.2 kN
Jaw opening: 0-5 mm
Coupling: Af159 mm or Af20 mm Further couplings on request
Pneumatic connection: M5
Weight per grip w/ jaws: 0.56 kg
Body: Aluminum, anodized
Temperature range: 0°C … +70° Further temperature ranges on request
Scope of delivery: 1 pair incl. carriers for insert jaws. Insert jaws must be ordered separately.

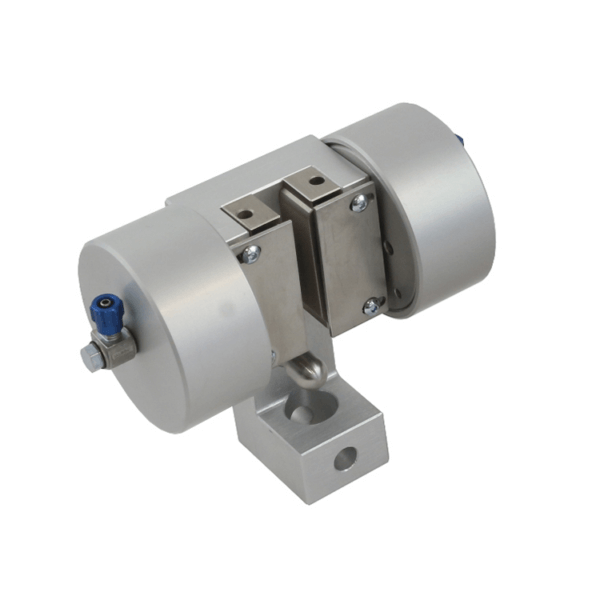

TA9+2Ko
Clamping force: 1.2 kN
Jaw opening: 0-5 mm
Coupling: Af159 mm or Af20 mm Further couplings on request
Pneumatic connection: M5
Weight per grip w/ jaws: 0.74 kg
Body: Aluminum, anodized
Temperature range: 0°C … +70° Further temperature ranges on request
Scope of delivery: 1 pair incl. carriers for insert jaws. Insert jaws must be ordered separately.
