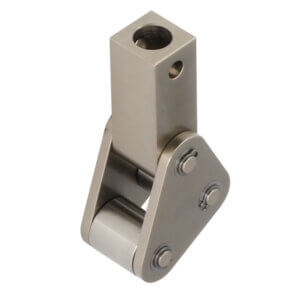

Peel Fixtures

Peel fixtures are used to evaluate the adhesive strength of substrates, such as tapes and packaging seals. The fixtures feature various clamp options to hold the substrate and peels the sample material at a predetermined angle and velocity.

Thwing-Albert designs and manufactures testing equipment to test the adhesive properties of pressure-sensitive labels, tapes and other adhesives. We offer various peel test fixtures including 90-degree, 180-degree, T-peel and variable degree options for adjustable angles. These fixtures can be used on ourย Universal Testing Machinesย or theย FP-2260 Friction/Peel Testerย that offers a compact instrument that can be dedicated to peel strength testing.

180 Degree Peel Fixture

Theย 180 Degree Peel Fixtureย is used withย Universal Testing Machinesย (UTMs) to test the peel or stripping strength of adhesive bonds in flexible adhesive materials. The sample is adhered to the 9-inch by 2-inch polished stainless steel plate and held by an upper grip. The sample is peeled off the plate to record and measure its adhesive strength. This fixture adheres to many common industry standards, including ASTM D3330, ASTM D903, ISO 29862 and FINAT 1.

90 Degree Peel Fixture

Ourย 90 Degree Peel Fixtureย is designed for theย Vantage Tester Seriesย andย FP-2260 Friction/Peel Testerย to test flexible adhesive materials. One end of the sample attaches to the plate, and the upper grip secures the other end of the sample. The peel tester maintains a 90-degree angle to measure peel force. This fixture meets PSTC-1A, ASTM D6252 and ASTM D6862 standards.

Delamination Peel Fixture

Theย Delamination Peel Fixtureย measures the force needed to separate adhesives in card laminations, such as credit and identification cards. This fixture is used with theย FP-2260 Friction/Peel Testerย and complies with ISO 10373.

German Wheel Peel Fixture

Theย German Wheel Peel Fixtureย measures the bond strength and adhesion of plastic and paper films, adhesive foils and films, tapes, and other materials according to DIN 53357. The fixture is used to measures the force required to separate the layers in the material. The sample must be flexible to wrap around the wheel.

225-3024 Heated Platen

Ourย Heated Platenย allows theย VantageNXย to measure peel strength at temperatures as high as 176 degrees Celsius (350 degrees Fahrenheit) to evaluate the effects of elevated temperatures on the adhesive material. This heated platen can be added to tensile strength testers from Thwing-Albert.

TA-LTF-100 Loop Tack Fixture

Theย Loop Tack Fixtureย from Thwing-Albert performs loop tack testing of pressure-sensitive labels, tapes and adhesives. The sample is looped and lowered until it contacts the stainless steel plate, then the force needed to release the sample is measured. It meets standards such as PSTC 16 Loop Tack, FINAT FTM 9 Loop Tack and ASTM D6195.

Package Seal Strength Fixture

Theย Package Seal Strength Fixtureย is used to test seal strength for seal or lid removal and cup and tray peel. The vacuum-powered clamping system holds the sample, and the upper grip peels the sample open. The purpose of this peel adhesion fixture is to simulate how a consumer would remove the seal from the product in real-world use.

Probe Tack Fixture

Theย Probe Tack Fixtureย uses an inverted probe to test tack in pressure-sensitive adhesives. This fixture fits on theย VantageNXย UTM, and theย MAP4 Materials Testing Softwareย can analyze the tack adhesion data. It meets the ASTM D2979 standard.

TA50 Variable Angle Peel Test Fixture

Theย TA50 Peel Test Fixtureย measures the bond strength of samples using a sliding table and provides for an adjustable peel angle of ยฑ30 degrees while providing a maximum load capacity of 5 kilonewtons (kN). ย The sample is attached to the sliding table and the guide wires ensure a smooth, consistent movement while not influencing the measured peel strength.

Specialty FP-2260 Friction/Peel Test Fixtures

Theย FP-2260 Friction/Peel Testerย is equipped to test 180 degree peel without any special fixtures. ย Customers can choose to add additional fixtures for testing peel applications includingย T-Peel,ย Seal Strength,ย 90 Degree Peel, andย Delaminationย among others making this a diverse instrument with a compact footprint for testing.

Contact Thwing-Albert for Peel Fixtures

Thwing-Albert has over 125 years of experience in instrumentation for adhesive strength testing. We have the equipment your operations need. Get a quote or more information byย contacting our team onlineย today.ย
