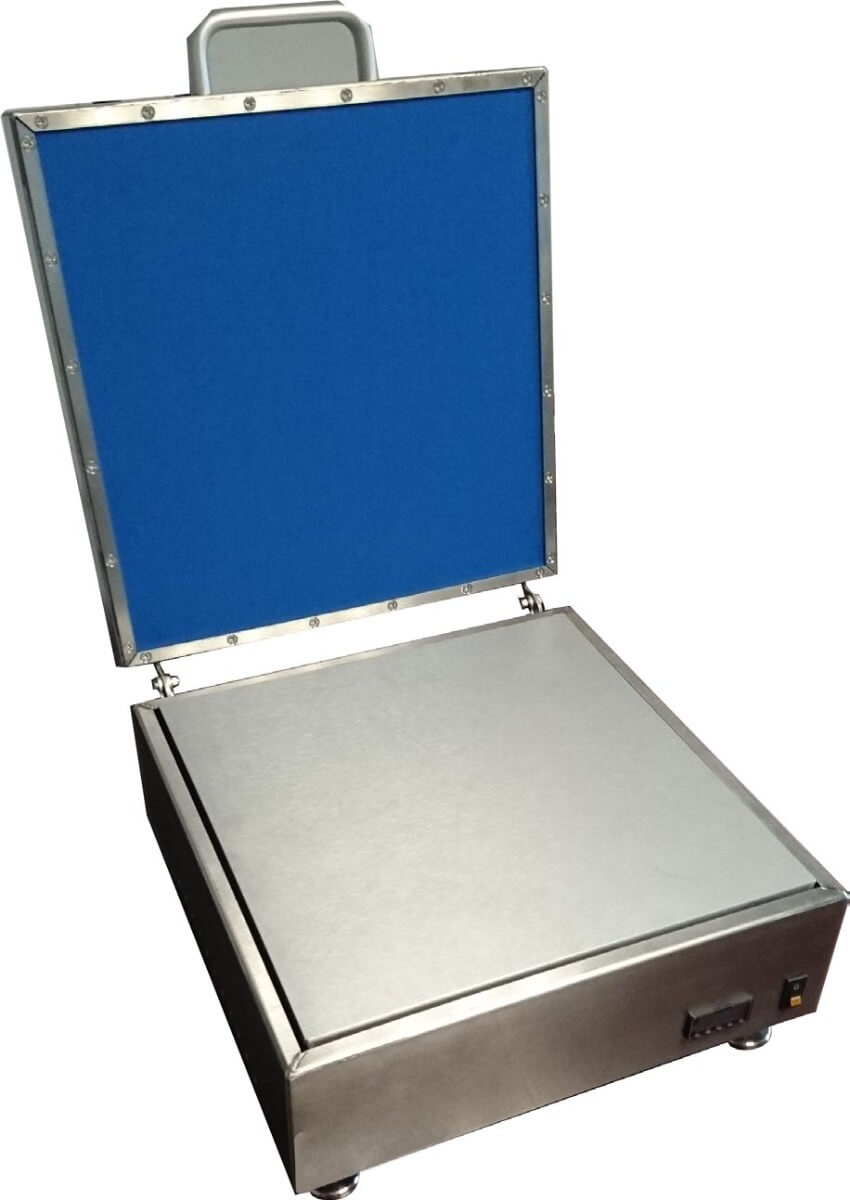

Speed Dryer (RL-SD-A/B)

The Rycolab Speed Dryer is used for drying purposes of paper or pulp sheets. Also for mass determination of sludge. Two sizes available:
RL-SD-A350 x 350 mm
RL-SD-B 580 x 430 mm

Description

The Rycolab Speed Dryer is used for drying purposes of paper or pulp sheets. Also for mass determination of sludge.

Two sizes available – heating plate:

  • RL – SD – A is 350 x 350 mm
  • RL – SD -B is 580 x 430 mm
  • Optional Sizes of Heating Plate: 580 x 420mm or 900 x 400mm

Specifications:

  • Special heating plate with equal heat distribution
  • Lightweight drying cover
  • On-off switch in the front-panel
  • Temperature adjustable (+- 1 °C max. deviation)
  • Regulator with digital display
  • Special air-permeable fabric for perfect steam evaporation
  • Dryer temperature adjustable up to 180 °C
  • Spare cloth easy to change
  • Standard: TAPPI T20

Connections:  Electric: 230 V / 50Hz

Dimensions & Weight:

  • Only machine: 380 x 420 x 180mm (WxLxH) / 18 kg
  • With packaging box: 500 x 600 x 300mm (WxLxH) / 30kg

Additional information

List of Standards

TAPPI T20
