Drum Dryer (E-100)

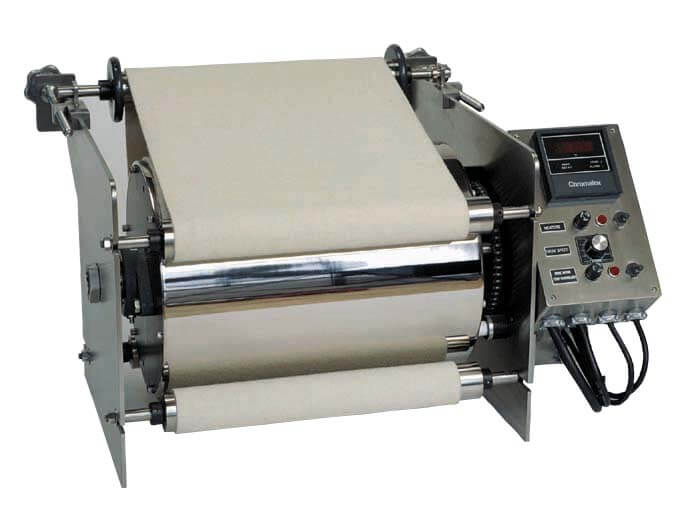

The E-100 FORMAX™ 12″ Drum Dryer is designed for drying hand sheets rapidly with precise temperature control.

Description

The FORMAX™ 12″ Drum Dryer is designed for drying hand sheets rapidly with precise temperature control. The 12″ diameter x 16″ face drum accommodates a wide range of hand sheet dimensions. By controlling the drum speed and temperature, rapid and consistent sheet drying is achieved. The drum temperature is digitally controlled with a thermocouple feedback sensor.  The dryer is unique in the use of air heaters (3,200 watts) to avoid the potential safety hazards associated with older liquid or steam filled drums. A continuous wool felt carries the sheets through the dryer.

Features: Felt carrier for drying laboratory hand sheets Nickel-Plated aluminum drum is 12″ diameter with a 16″ face Stainless steel rolls and frame Variable speed drive motor control, 0-8 rpm Digital temperature control Heat input available: 3,200 watts

Options: Teflon mesh carrier fabric Release polymer coated drum Different motor speeds.

Additional information

Weight 64.000000 lbs
Dimensions

74 x 61 x 41 cm [29 x 24 x 16 in] (W x L x H)

Industry

Pulp

Model Name

E-100

Testing Property

Pulp

Downloads

E-100 Drum Dryer
