68-3014 – SAE J2665 (2″ depth)

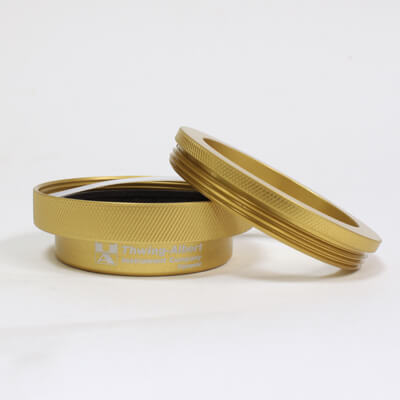

The 68-3000 EZ-Cup Vapometer is designed to meet the standard SAE J2655 test procedure which measures water vapor permeability. This model Vapometer consists of a light weight aluminum cup and an aluminum threaded flanged ring designed with two neoprene gaskets which use a Teflon seal that secures the specimen in place. This Vapometer for SAE J2665 was specifically created to eliminate edge leakage, providing fast, secure sealing of the specimen between the gaskets. Specimens are quickly loaded and sealed in place by twisting the threaded upper aluminum cap in place. Previous Vapometer models required the tightening of multiple screws in order to properly secure a specimen.

Part #68-3014 – SAE J2665 (2″ depth)

Description

The 68-3000 EZ-Cup Vapometer is designed to meet the standard SAE J2655 test procedure which measures water vapor permeability. This model Vapometer consists of a lightweight aluminum cup and an aluminum threaded flanged ring designed with two neoprene gaskets that use a Teflon seal that secures the specimen in place. This Vapometer for SAE J2665 was specifically created to eliminate edge leakage, providing fast, secure sealing of the specimen between the gaskets. Specimens are quickly loaded and sealed in place by twisting the threaded upper aluminum cap in place. Previous Vapometer models required the tightening of multiple screws in order to properly secure a specimen.

  • Secure Samples in Half the Time.
  • Reduce Operator Time – Increase Productivity.
  • Serialized to Keep Track of Multiple Samples.

Features:
Complies with ASTM E96

Test samples up to 3 mm (1/8 in.) thick

Diameter: 63.5 mm (2.5 in.)

Depth: 50.8 mm (2.0 in.) Weight: 150 grams

Available Models:
Part #68-3000 – 2” depth
Part #68-3002 – 3/4” depth
Part #68-3003 – 1/2” depth
Part #68-3014 – SAE J2665 (2″ depth)

Accurate samples for the Vapometer (2.9375 in. dia.) can be quickly prepared using a Circular Steel Die (2.9375 in. dia.) with the 240-7B Alfa Cutter.

Additional information

Industry

Nonwovens, Plastic Film

List of Standards

ASTM E96

Model Name

68-3004

Pricing Note

NOTE: Special Internet Pricing valid for the United States only. These prices are only valid for credit card orders or purchase orders with Net 30 terms. Please request a quote for international inquiries.

Testing Property

Air Permeability, Moisture Vapor Transmission

Downloads

Vapometer Cups for SAE J2655
