Description
Trust the Thwing-Albert Electronic ProTear to measure Elmendorf Tear Strength of a variety of materials.ย Thwing-Albert is the original manufacturer of the Elmendorf Tear Tester which was designed by Dr. Thwing and Mr. Armin Elmendorf. This method developed over a century ago established the industry standards used worldwide today to measure tear strength.
The ProTear provides a rapid and precise way to evaluate the tear resistance of sheet materials including paper, textiles, roofing products, plastic film, and foils.
The electronic model features a touch-screen panel that allows for a simple one-touch process to run tear tests and track data. Two different pendulums are available with various augmenting weights and can be configured to meet capacities from 200g-12,800g.ย MAP4 Software can be used to evaluate the sample test results with dynamic tear data calculated at every point of the test to allow for real-time data as the sample tears.ย ย
Adheres to Industry Quality Standards for Elmendorf Tear Strength:
- ASTM D295, ASTM D689, ASTM D751, ASTM D752, ASTM D4247, ASTM D1424,ย ASTM D1922, ASTM D5734
- TAPPI T414, TAPPI T496
- BS 2782, BS 4253, BS 4468
- CPPA D.9
- DIN 53862, DIN 53128
- ISO 1974, ISO 6383-2, ISO 9290, ISO 13937-1
- EN21974
- SCAN P11

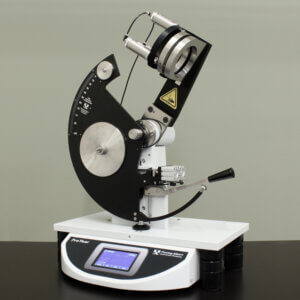

- Can also be ordered with the Spencer Impact Attachmentย for ASTMย D3420-94
**Test results should fall between 20% and 80% of your pendulum capacity. For example, if you are using a 1600 gram pendulum, you should expect to get tear results between 1280 grams and 320 grams**
The electronic model provides several enhancements over the Mechanical Elmendorf Model. All test results and statistics are calculated automatically and displayed on the touch-screen and you can print or connect to a computer for more extensive data analysis using MAP4 testing software.
The control panel provides one-touch clamping and test capabilities. Other functions include data entry of sample information such as sample ID, thickness, basis weight, sample direction and number of plies being torn. The โUnitsโ key enables the simple configuration of result units.
Features
- Touch-screen menu
- Toolless easy-mount pendulums and augmenting weights
- Electronic leveling sensor for accurate setup
- Configurable display for results and reporting
- Compatible with MAP4 Software for advanced analysis
- Multi-Port connections for data export
- One-touch pneumatic clamping and pendulum release
Operation
The operation of the ProTear is easy โsimply secure the sample in the clamps, make an initial tear and press test to release the pendulum. The tearing resistance of the material is measured via the transference of the potential energy stored in the raised pendulum to kinetic energy. A portion of this energy is absorbed during the tearing of the sample and is used as a measure of the resistance of the material to a continuing tear. The energy required to tear the sample is reported as a percentage of the pendulum capacity or force.
The Electronic ProTear calculates all test results and statistics automatically and displays them immediately. Data can be exported to a PC, directly printed or analyzed in more depth using MAP4 materials testing software.
Precision and accuracy are increased by capturing dynamic tear data in real-time digitally. The capacity can be changed quickly with easy-mount technology for pendulum installation that does not require tools. Testing capacity ranges from 200g up to 12,800g allowing for a variety of applications with one machine.
The touch-screen display allows for quick clamping and testing. Lab technicians can easily customize units of measurement and reporting styles in the menu. Other functions include data entry of sample information such as sample ID, thickness, basis weight, sample direction, and the number of plies being torn.
Fast, Flexible Software
The ProTearโs touchscreen interface provides total control over test parameters and reports test data seconds after test completion.
- Test Results include tear strength, tear per ply, average tear strength, and tear index
- Quickly enter sample data โ thickness, basis weight, sample ID, sample direction
- Configurable display โ test parameters, results, and reports
- Obtain results as percent of pendulum capacity, grams, pounds, newtons, or millinewtons
- Calculated Statistics โ average, high, low, standard deviation, range & variance
- Configurable reports
Automatic Pendulum Return

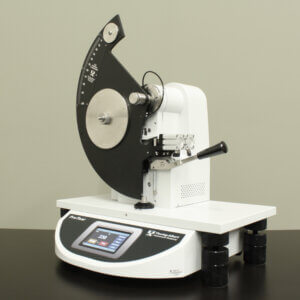

The Automatic Pendulum Return is optional for ProTear Elmendorf Tear Electronic Testers.ย This optional feature enhances the capability of the instrument by automatically returning the pendulum to the start position after a test is complete. Now you can eliminate the need for the operator to โcatchโ the pendulum on the backswing and manually reset for each test. In turn, this reduces the chance of injury and fatigue to the operator, especially when performing a high volume of testing.ย
MAP4 Software
MAP4 software is available for customers that would like toย run detailed reports and have access to in-depth data. Aย preloaded test will be available and is configured to meetย the industry standards from ASTM, TAPPI, and others.ย ย The program includes a SQL Lite database. MAP4 willย provide a real-time data curve at the same time as theย results are being displayed.
