Vantage Tissue Burst Tester

The Vantage Burst Tester is configured with the fixture to meet ASTM D6548, ISO 12625-9:2004, ISO 12625-11 and TAPPI T570.

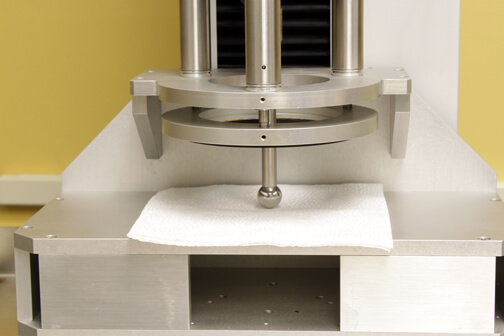

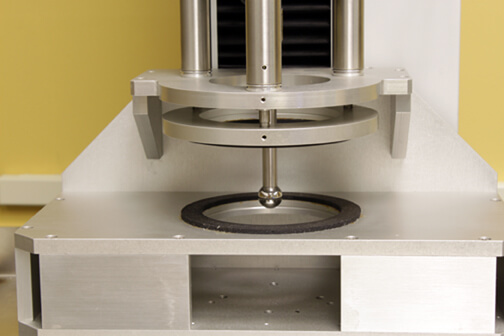

Tissue Burst Fixture, 25 N (5.6 lbf)

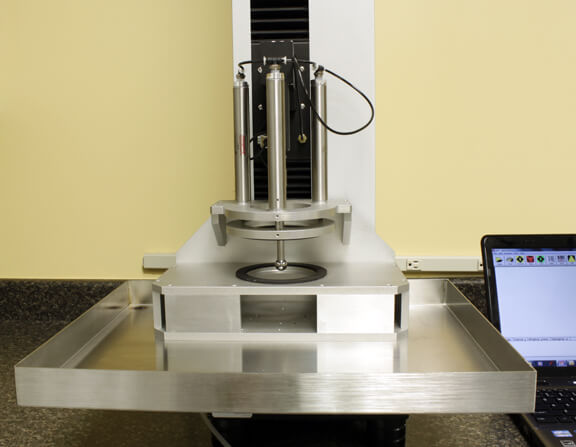

The Vantage Burst Tester

Sample Type: Tissue and toweling

Tissue Burst Fixture:  25 N (5.6 lbf)

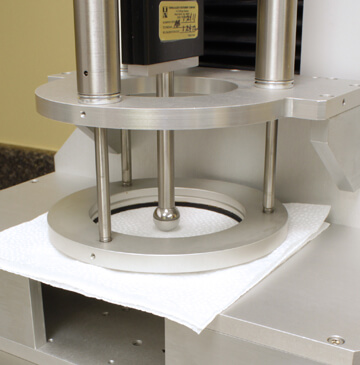

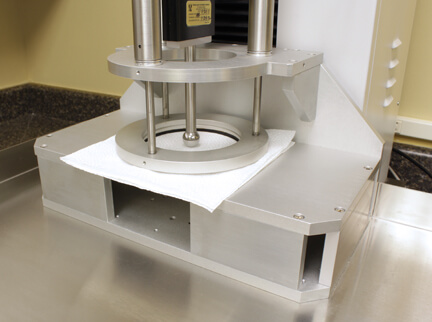

A pneumatic clamp eliminates sample slippage and ensures rapid test set-up. An opening of 50.8 mm provides ample spare for loading the samples. An optional foot switch provides hands-free operation. It can be used for wet or dry burst testing. Complies with ASTM D6548, ISO 12625-9:2004, ISO 12625-11 and TAPPI T570.

Additional information

Crosshead Guidance

Precision Ball Screw

Crosshead Speed

1 to 1000 mm/min (0.05 to 40 in/min)

Crosshead Speed Accuracy


Crosshead Travel

584 mm (23 in) does not include PC

Depth Clearance

89 mm (3.5 in)

Force Measurement

High precision 20 N or 50 N Load Cell

Force Resolution

16 Bit A/D to 0.1 N

Horizontal Clearance



Nonwovens, Packaging, Paper, Tissue

List of Standards

ASTM D6548, TAPPI T570, ISO 12625-9, ISO 12625-11, CEN1265-9

Model Name

Vantage Burst

Position Resolution

0.6 um (0.00002 inch)

Power Requirements

110V 50 or 60Hz, 220V 50Hz, 230V 50Hz, 240V 50Hz


Diameter: 0.625 in (15.9 mm) (other sizes available)

Safety Features

Emergency stop button, upper & lower limit switches with over-travel protection and load cell overload protection.

Software Available

REQUIRES: MAP-4 Software

System Control

PC-Based with serial interface (No PC slave cards) (PC not included)

Testing Property



Vantage Burst Tester
