Description

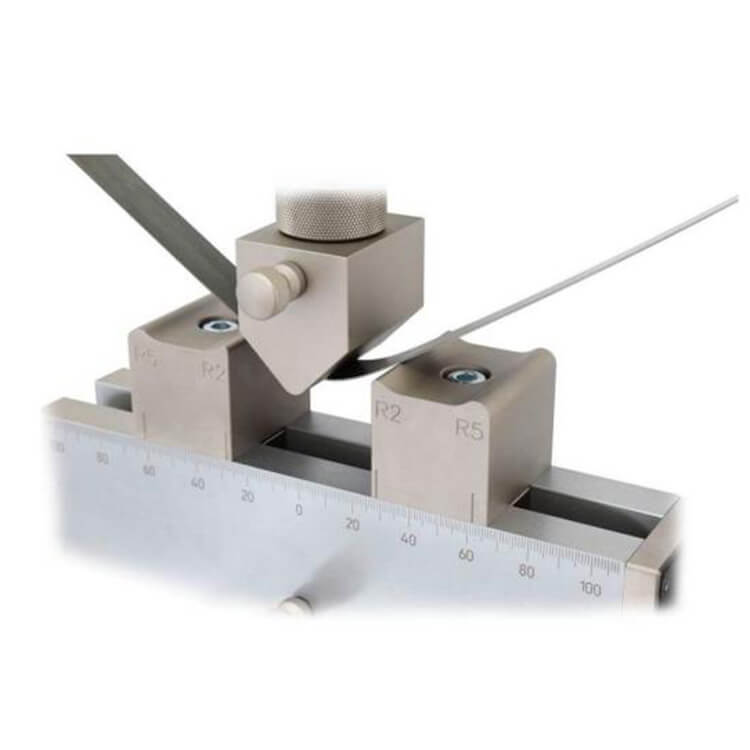

TA103 Bending Fixture with wheel move the supports centric, for universal use. Measure bending properties of various materials such as metals, plastics, wood, glass, etc.
- Max Load: 50 kN depending on coupling
- Max Temperature Range: 0 to +70°C (further ranges available upon request)
- Body: Steel, nickel-plated
- 50mm width
- Standards: ASTM D790
- TA103-AR3R55-OR10-Ni
- Milled Radii R3 und R5
- Upper Radius 10
Many combinations are available for both three point and four point bending applications including those to meet standards like ASTM D2344, ISO 7438, ASTM D7774, ASTM D6415. When ordering you can select the bending bars, guides, and anvils to meet your application.
