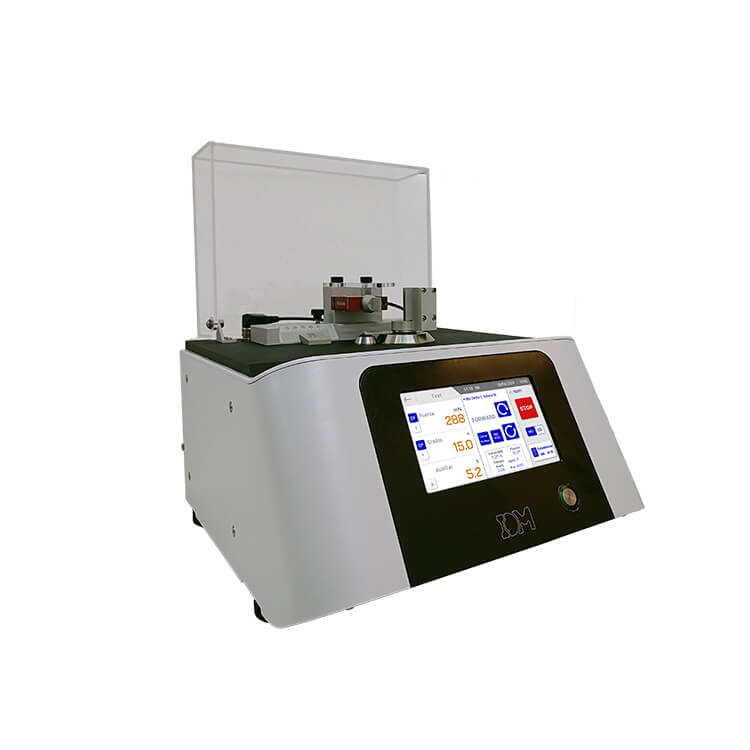

Bending Resistance Tester (RL-BRT-A)

This bending resistance tester is used to determine the bending resistance and stiffness of paper and paperboard.


They Rycolab bending resistance tester is used to determine the bending resistance and stiffness of paper and paperboard.

Bending resistance in paper and board is a complex property depending upon the network characteristics of the sheets as well as the fundamental fiber properties to which it relates. It varies with the type of paper, the fibers used, the making process and the bulk and grammage of the finished sheet.

The two main criteria which govern stiffness are fiber dimensions and bulk. Rigidity has been found to be linearly proportional to the square root of thickness for a given grammage. Since the bulk density of a sheet is closely related to the degree of bonding and fiber strength, a change in any of the fundamental fiber properties will affect bending resistance.

After configuring the test conditions, the test can start immediately. By pressing the “Start”, button the sample is moved automatically. The sample-holder now moves to the preselected angle-position and the curve with the determined values are indicated on the large touchscreen The test will be started automatically as soon the load-cell is touching the sample (pre-load selectable). With the holding function, a holding time can be selected and then a second measurement can be taken. The holding time is very useful for testing label-paper when the bending-resistance on wet samples should be tested. After the test has been completed the sample holder returns to its starting position and the sample can be taken out. By means of the statistic function, the statistic values can be read (maximum, minimum, average, standard, deviation, ratio MC/CD) on the graphic display.

  • RS232 Port
  • Electricity: 110V-230V,50-60Hz (40W)
  • Pneumatic Model Air: 87psi (600kPA)
  • Instrument Dimensions (W x D x H):
    270 x 500 x 270mm (11 x 20 x 11 in)
  • Net Weight: 15kg (33 lbs)

Applicable Standards: ISO 2493, SCAN P29, DIN 53121,BS 3748, TAPPI T556, NFQ 03-048,IS 3748

Additional information

Weight 33.000000 lbs
Air Pressure Requirements

Pneumatic Model 87psi (600 kPa)


270 x 500 x 270 mm (11" x 20" x 11")

List of Standards

ISO 2493, SCAN P29, DIN 53121, BS 3748, TAPPI T556, NFQ 03-048, IS 3748

Model Name


Net Weight

15 Kg


Brochure – Bending Resistance Tester
