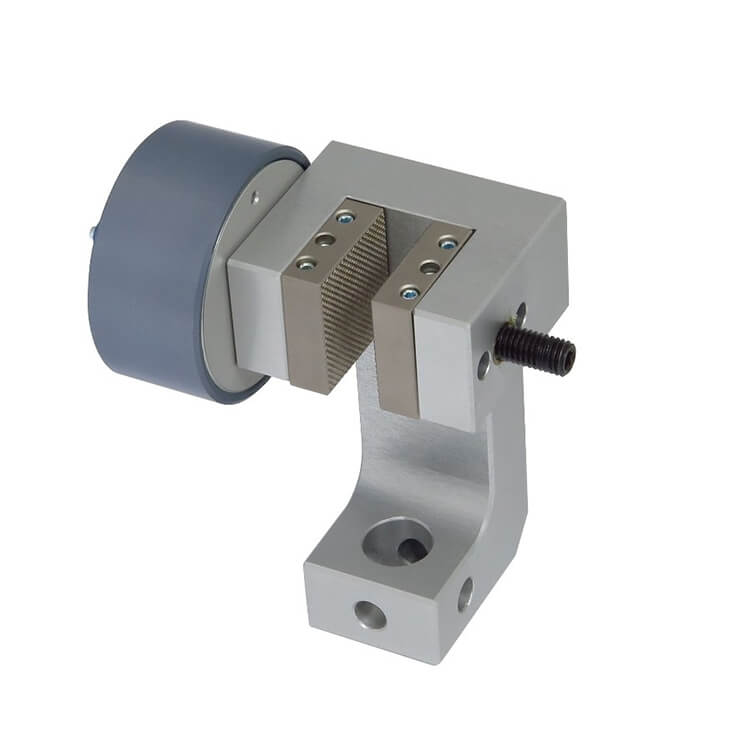

TA56k+Ko Pneumatic Grips (1.2 kN / 7 bar)

TA56k +Ko – Pneumatic Grip Pneumatic piston 50mm Ø
Manually adjustable counter-jaw
Weight: 0.53 kg per grip

Description

TA56k +Ko – Pneumatic Grip
Pneumatic piston 50mm Ø,
Manually adjustable counter-jaw
Weight: 0.53 kg per grip

Small universal pneumatic grips with quick clamping action to test foils, textiles, paper, etc.

TA56k +2Ko Pneumatic Grip
Two-sided pneumatic pistons 50mm Ø
Weight: 0.71 kg per grip

  • Clamping force: 1.2 kN / 7bar
  • Temperature range: 0°C – +70°C (depending on jaws) Additional temperature ranges available on request.
  • Body: Aluminum, anodized
  • Pneumatic connection: M5

Also available as vice grip (see data sheet TA56k)

Additional information

Weight 0.000000 lbs
Grip/Fixture Category

Pneumatic Grips

Downloads

TA56k Ko Grips
