Description

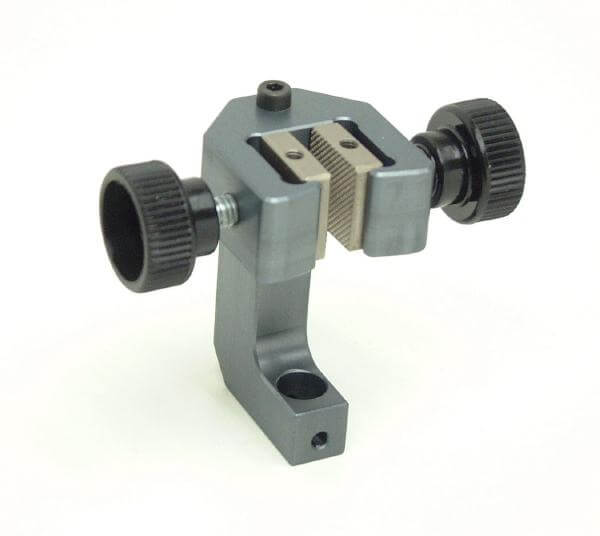

TA140 Lightweight Mechanical Vise Grips are compact grips for testing small samples. Â
|
TA140k |
|
|
Max. tensile force: |
100 N |
|
Jaw clamping surface: |
15×15 mm |
|
Jaw opening: |
0-8 mm depending on jaw type |
|
Standard coupling: |
Af8. Further couplings on request |
|
Body: |
Anodized aluminum |
|
Jaws: |
Hardened steel 58HRC |
|
Temperature range: |
0 … +70°C |
|
Weight per grip without jaws: |
57 g |
|
Scope of Supply: |
1 pair of grips without jaws |
Available Models:
| Â | Max Tensile Force | Max Clamping Force | Weight |
| TA140k | 100 N | – | 57 g |
| TA140k+Ko | 70 N | 140 N at 7 bar | 66 g |
| TA140k+2Ko | 70 N | 140 N at 7 bar | 80 g |
| TA140s | 100 N | – | 33 g |
| TA140s+Ko | 70 N | 140 N at 7 bar | 49 g |
| TA140s+2Ko | 70 N | 140 N at 7 bar | 65 g |
