Description

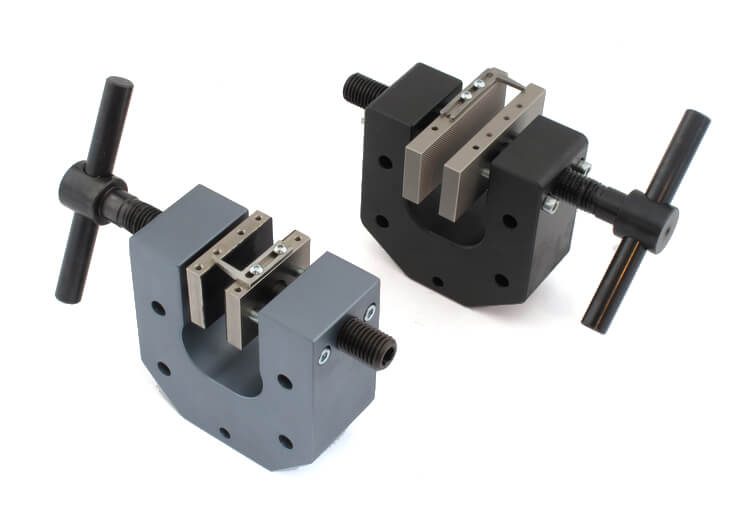

These vise grips provide a simple and effective method to hold specimens. Dual-acting design, also for asymmetrical samples.
- TA154-10 Universal tensile grips, 10 kN capacity.
- TA154-20 Universal tensile grips, 20 kN capacity.
- An open-ended design allows easy insertion of samples wider then the grip inserts.
- TA154 are supplied in pairs but can also be ordered as single grip (0.5 pair).
- Grips and jaws need to be ordered separately.
- Jaws are available with smooth serrated, diamond serrated, line contact or rubber covered surfaces. Inserts are pivoted to insure proper clamping and to avoid pinching the sample.
|
|
TA154-10 |
TA154-20 |
|
Tensile force |
10 kN |
20 kN |
|
Temperature range |
0°C – +180°C |
  0°C – +350°C |
|
Body |
Aluminium, anodized |
Steel, nickel-plated |
|
Weight |
2.36 kg each grip (without jaws) |
5.04 kg each grip (without jaws) |
|
Scope of delivery |
1 pair of grips without jaws |
1 pair of grips without jaws |
