Climbing Drum Peel Fixture

Description

The TA115 Fixture is used for testing peel resistance of adhesive bonds for materials with honeycomb sandwich constructions to meet ASTM D1781, EN 2243-3, and DIN 53295.

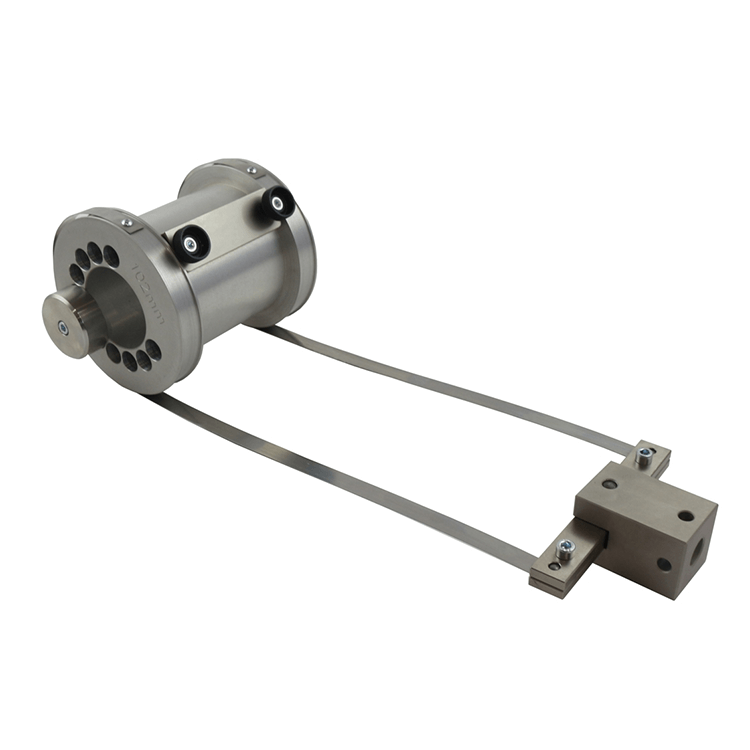

The fixture consists of a flanged drum, flexible loading straps connected to adapter, and clamps for holding the test specimen.

• Max. Load: 10 kN
• Coupling: Af159 or Af20  (Further coupling sizes on request)
• Min. Travel Distance: 1200 mm
• Material: Aluminum (drum), Steel (rest)
• Temperature Range: 0 to +70°C  (Further temperature ranges on request)
• Weight:
  3.4 kg drum
  4.35 kg total weight including adapter part
• Scope of Delivery: 1 fixture
  An upper grip is required and must be ordered separately

TA115-102 for ASTM D1781
Climbing drum peel test fixture to determine peel resistance of adhesive bonds between a relatively flexible adherend and a rigid adherend; and the relatively flexible facing of a sandwich structure and its core according to ASTM D1781.

• Drum Diameter: 102 mm (4 in.)
• Sample Width: 25 mm (1 in.) for laminated assemblies
• 76 mm (3 in.) for sandwich constructions
• Sample Length:
  Min. 254 mm (10 in.) for laminated assemblies
  Min. 305 mm (12 in.) for sandwich constructions

TA115-100 for EN 2243-3 and DIN 53295
Climbing drum peel test fixture to determine peel resistance of adhesive bonds in honeycomb core sandwich constructions according to EN 2243-3 and DIN 53295

• Drum Diameter: 100 mm
• Sample Width: 76 mm
• Sample Length: 300 mm
