Internal Bond Tester (RL-IBT-A)

This tester is designed to determine the internal bonding strength of paper and paperboard.

Description

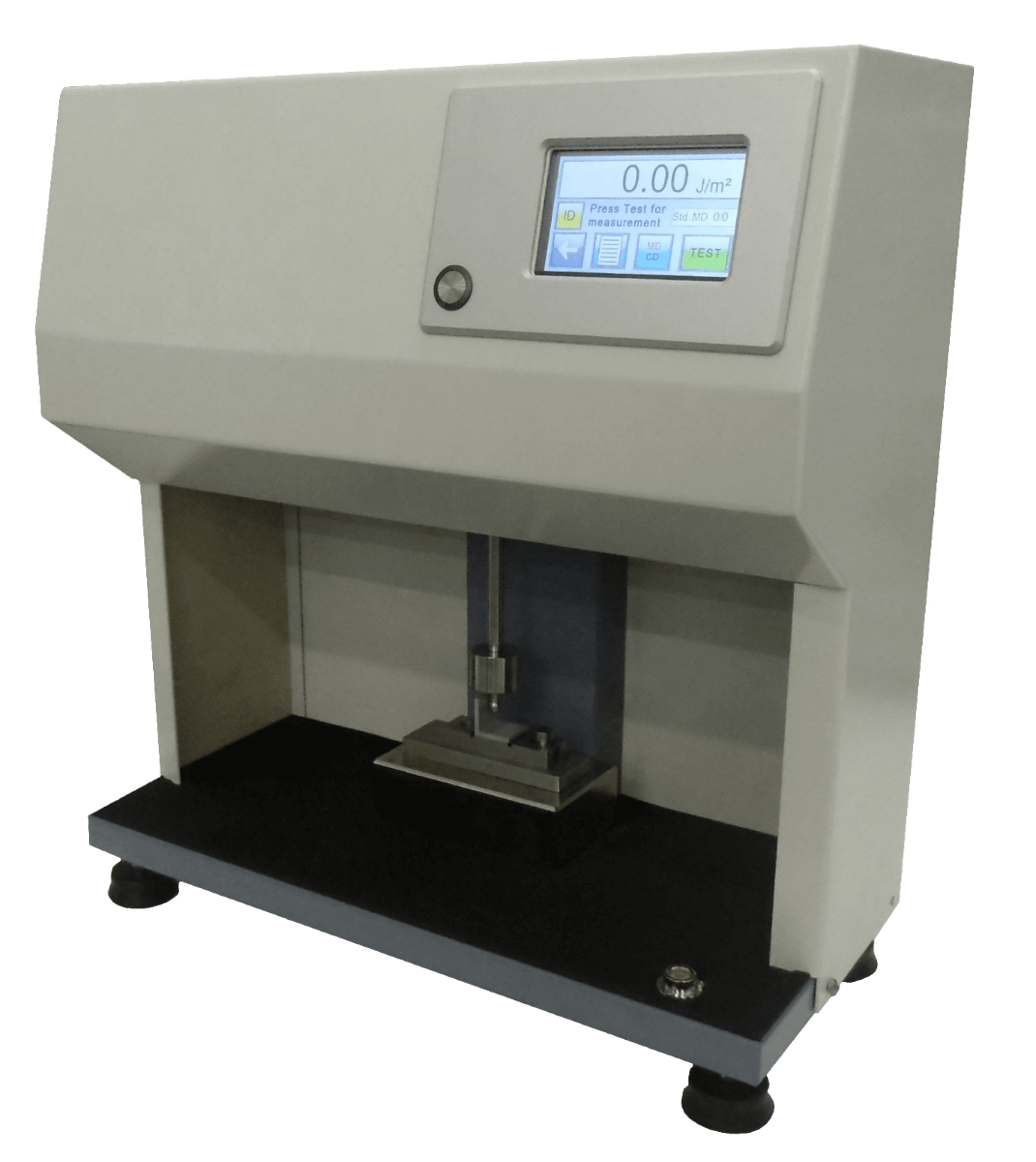

The Rycolab RL-IBT-A is used to determine the internal bonding strength of paper according to the Scott Bond method.

This device comes with a built-in digital display and is microprocessor controlled. The standard configuration is delivered with a medium range pendulum. All the parts are built into a sturdy steel frame. A pendulum mechanism pulls the pendulum back to starting position if the test is carried out. Push down sample holder for quick changing of the base plate with the sample and the aluminum angle.

The sample that needs testing is placed in the measuring area. By pushing the start button the pendulum is released and hits the aluminum angle, glued to the sample with double adhesive tape.  The sample is pushed away and the needed energy is measured and displayed in J/m².

Features

  • Digital display, microprocessor controlled
  • Automatic pendulum return to starting position
  • Easy inserting of the sample base with a quick changing mechanism
  • Delaminating angle of the pendulum to the surface of the sample: 90°
  • Easy insertion of the sample base with a quick changing mechanism
  • 5 support base and 5 aluminum angles as standard delivery
  • Display of values options include:J/m², kg/cm, ft.lb/in²

Specifications

  • RS232 PortElectricity: 110-230 V, 50-60 Hz AC
  • Air: 87psi (600kPa)
  • Instrument Dimensions (W x D x H):600 x 300 x 550mm (24 x 12 x 22 in)
  • Packaging Dimensions (W x D x H):750 x 450 x 700mm (30 x 18 x 28 in)
  • Net Weight: 20kg (44 lbs)
  • Gross Weight: 32kg (71 lbs)

Applicable Standards:
TAPPI T569, TAPPI T833

Models

RL-IBT-A4

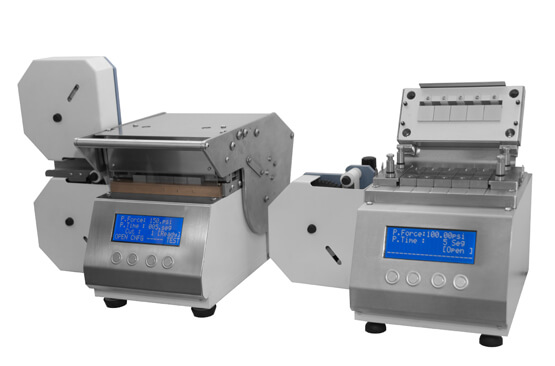

Device w/ manual sample preparation station

RL-IBT-A2
Device w/ automatic sample preparation station

Included Items:

  • Instrument with sample preparation station
  • 5 base plates
  • 5 aluminum angles
  • 1 double adhesive tape
  • Medium range pendulum (1.050 J/m2)
    More optional pendulums: see below

Optional:

  • Low weight pendulum with a range of 525 J/m²
  • High range pendulum with 2.100 J/m²
  • Double adhesive tapes
  • Set aluminum angles (set = 5 pcs)
  • Set base plates (set = 5 pcs)

Additional information

Weight 44.000000 lbs
Air Pressure Requirements

87psi (600kPa)

Dimensions

Net 600 x 300 x 550 mm (24 x 12 x 22 in) Gross 750 x 450 x 700 mm (30 x 18 x 28 in)

Gross Weight

32 Kg (71 lbs)

List of Standards

TAPPI T569, TAPPI T833, NWSP 110.3.R0

Model Name

RL-IBT-A

Net Weight

20 Kg (44 lbs)

Downloads

Brochure – Internal Bond Tester
