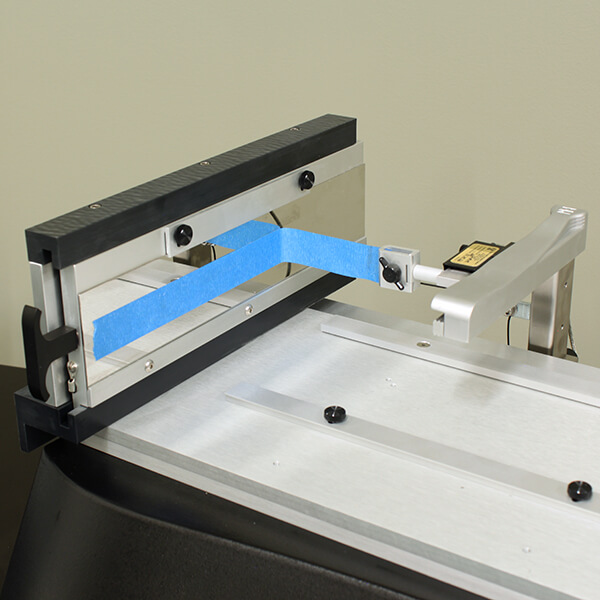

This 90° Peel Fixture is designed for use on the FP-2260 Friction/Peel Tester. The fixture is used to add the ability to evaluate 90 degree peel tests for the peel adhesion.
- Sample Type: Flexible adhesive material
- This fixture utilizes a moving sample table to maintain a 90° angle while measuring peel force. The adhesive sample is attached to the plate while the opposite end is secured by the moving crosshead using a clamp.
- Industry Standards include:
ASTM D6862 Standard Test Method for 90 Degree Peel Resistance of Adhesives
ASTM D6252 Standard Test Method for Peel Adhesion of Pressure-Sensitive Label Stocks at a 90 Degree Angle
PSTC 101 Method F – Peel Adhesion of Pressure-Sensitive Tape 90 degree peel test of tape to a standard steel plate
