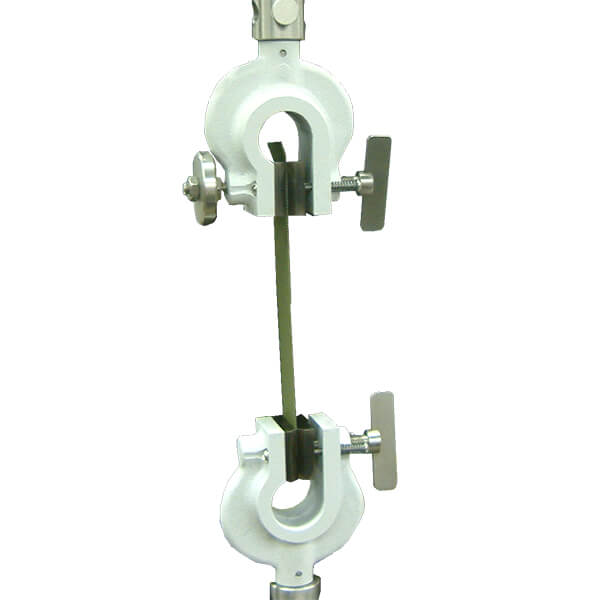

734B Mechanical Vise Grips (750 N)

734B mechanical vise grips are ideal for general tensile strength testing of paper, plastics, foils, textiles and other sheet materials.
Capacity:  750N (170 lbf)

Description

734B mechanical vise grips are ideal for general tensile strength testing.

  • Universal tensile grips, 750 N (77kg, 150 lbf) capacity.
  • Ideal for strips of rubber, plastic and foam. An open-ended design allows easy insertion of samples wider than the grip jaws.
  • Grip jaws are available with smooth serrated, diamond serrated, line contact, or rubber covered surfaces.

Thwing-Albert ’s Mechanical Vise Grips are designed for measuring materials up to 10 kN. They are ideal for general tensile strength testing of paper, plastics, foils, textiles and other sheet materials.

An open-ended design allows easy insertion of samples wider than the grip jaws. The open space above the gripping surface provides convenient access that simplifies sample loading.

Mechanical Vise Grips can be used on all of Thwing-Albert’s tensile testers. Grip jaws are available with smooth, serrated, diamond serrated, line contact or rubber covered surfaces. Different widths are available for most of the grip models.

The jaws are positioned by hand and then tightened with a wrench enabling the sample to be placed in the center of the grip to ensure the best alignment.

You can also order this grip with pneumatic clamping 734 K.

Additional information

Capacity

750 N (170 lbf)

Grip/Fixture Category

Mechanical Vise Grips

Grip Length

108 mm (4.25 in)

Max Sample Thickness

4.76 mm (0.1875 in)

Max Sample Width

101.6 mm (4 in)

Upper Grip Weight

0.906 gm (2.0 lb)
