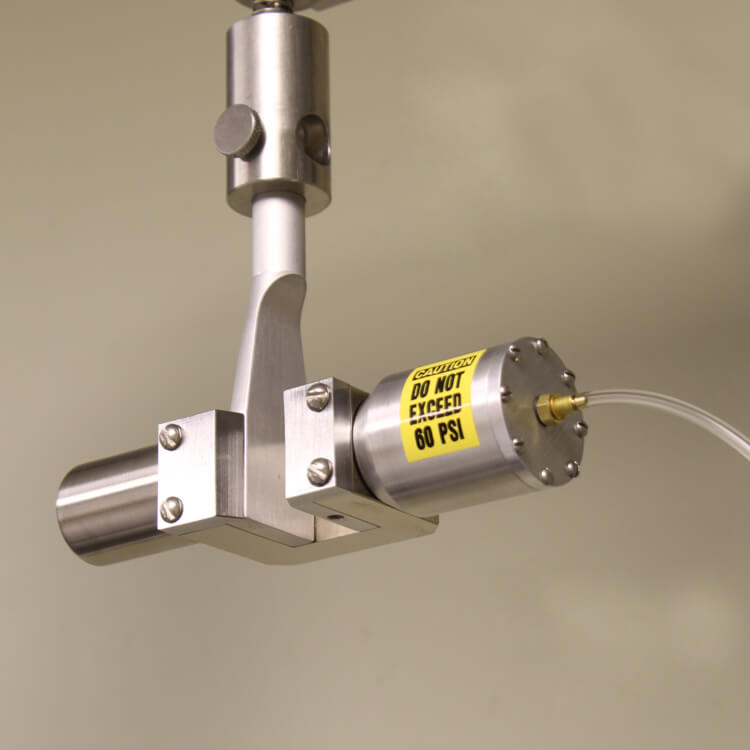

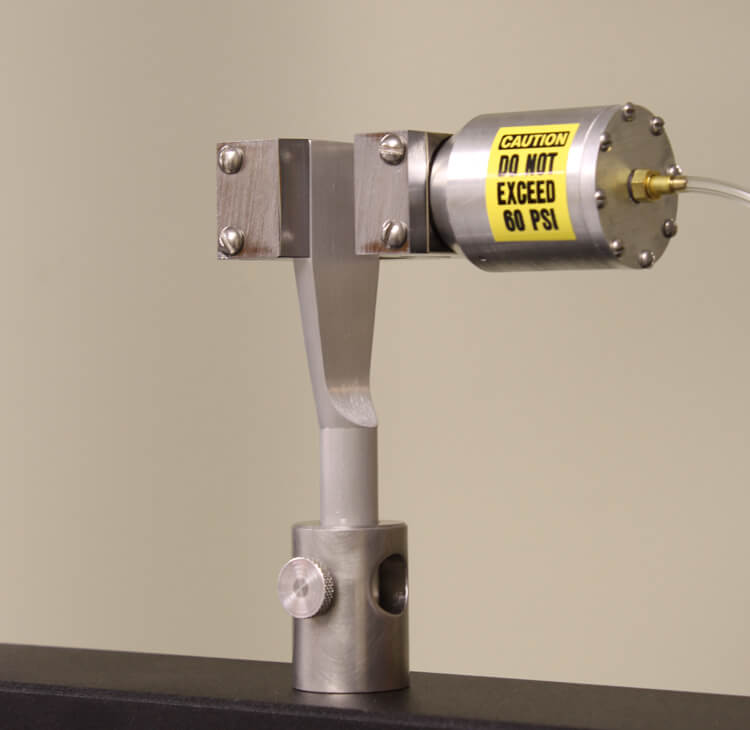

733GC Pneumatic Tensile Tester Grips (125 N)

General purpose pneumatic grips, 125 N (25 lbf) capacity.
Maximum insert width 1″ x 1″

Description

  • General purpose pneumatic grips, 125 N (25 lbf) capacity.
  • This grip is uniquely designed with a fixed stop for testing 25.4 mm (1 inch) side samples.
  • It also opens to 12.5 mm which simplifies sample loading.
  • It is the industry choice for testing lightweight material including tissue & toweling, nonwovens and other materials.
  • Note:  Maximum insert width 1″ x 1″
  • Suitable for use with the VantageNX or QC-3A to meet ASTM F88 and many other industry standards.

Additional information

Weight 0.000000 lbs
Capacity

125 N (25 lbf)

Grip/Fixture Category

Pneumatic Grips

Grip Length

108 mm (4.25 in)

Industry

Adhesives, Nonwovens, Paper, Plastic Film, Tissue, Textiles

Max Sample Thickness

12.7 mm (0.5 in)

Max Sample Width

25.4 mm (1.0 in)

Upper Grip Weight

0.68 kg (1.5 lb)

Downloads

733GC Grips
