Laboratory Pulpers

Thwing-Albert offers a full range of Laboratory Pulpers. Pulpers are indispensable for evaluating secondary fiber processes, additives and quality.

Description

Thwing-Albert offers a full range of Laboratory Pulpers. Pulpers are indispensable for evaluating secondary fiber processes, additives and quality.

Model

Capacity
Range

Rank
Volume
Weight Consistency
Range
Dimensions
W x L x H (in)
H-100 30 to 350 AD gm 8 liters (2 gal) 23 kg (50 lbs) 2 to 7% 11 x 25 x 17
H-100 50 to 100 AD gm 2.5 liters (85 oz) 18 kg (40 lbs) 2 to 18% 10 x 20 x 14
N-100V 450 AD gm
(15% consistency)
12 liters (3 gal) 41 kg (90 lbs) 5 to 15% 12 x 20 x 17
J-100 1800
(6% consistency)
40 liters (10.5 gal) 55 kg (120 lbs) 2 to 7% 14.5 x 30 x 16
J-100H 1800
(7% consistency)
40 liters (10.5 gal) 40 liters (10.5 gal) 3 to 15% 20 x 40 x 26


H-100

H-100 Maelstrom (H-100V):
 The H-100 is constructed of stainless steel throughout and has a motor that is 1/2 HP, 120 V, 60 Hz with a V belt drive. The pulper is supplied with a clear polycarbonate lid that enables stock visualization. It has an optional variable speed motor control and an external heater with digital temperature control.

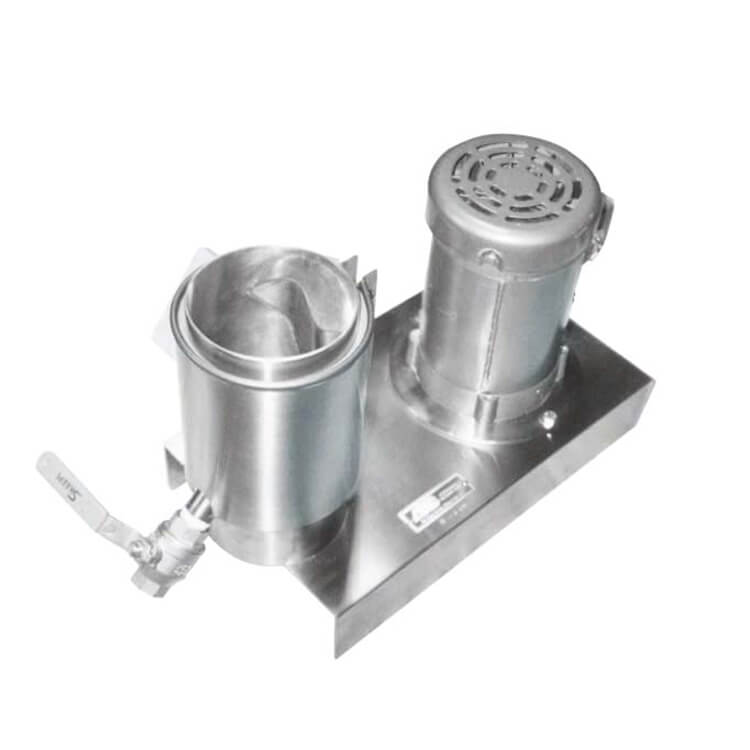

H-200 Maelstrom (H-200V):
The H-200 is designed to accommodate small sample sizes and wide consistency ranges. It is constructed of stainless steel throughout and has a motor that is 3/4 HP with a gear belt drive. The pulper is supplied with a clear polycarbonate lid that enables stock visualization. It has an optional variable speed motor control (120V/60 Hz, Max Amp 15.5 amps) and a silicone heater mat (375 watt) with digital temperature control.

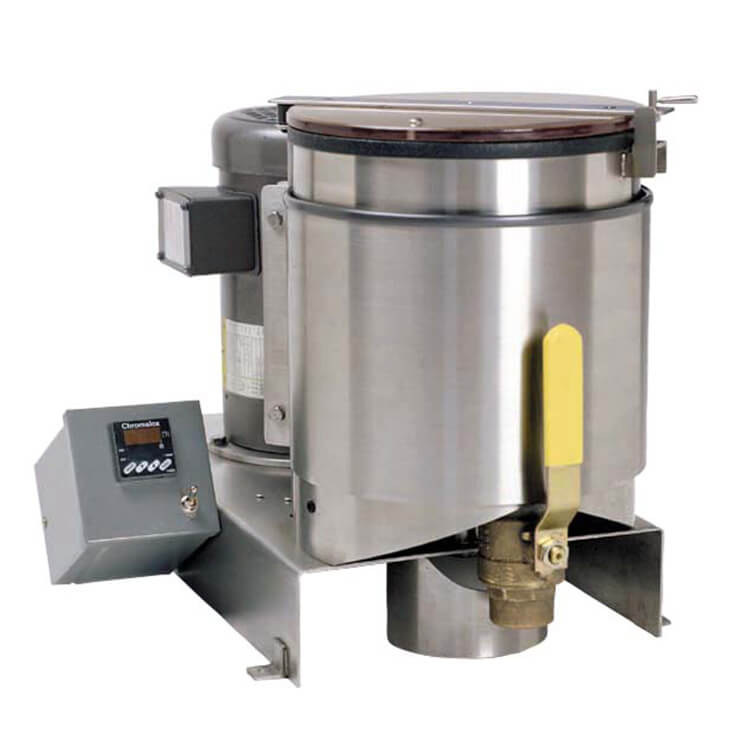

N-100V 450 H High Consistency (N-100T):
The N-100V is a small scale, compact pulper for high consistency defibering of virgin or secondary fiber. It is constructed of stainless steel throughout and has a motor that is 2 HP, 230 V/60 Hz, 3 Phase with variable speed controller and a gear belt and pulley drive system. The pulper is supplied with a clear polycarbonate lid that enables stock visualization. It has an optional silicone heater mat with digital temperature control.

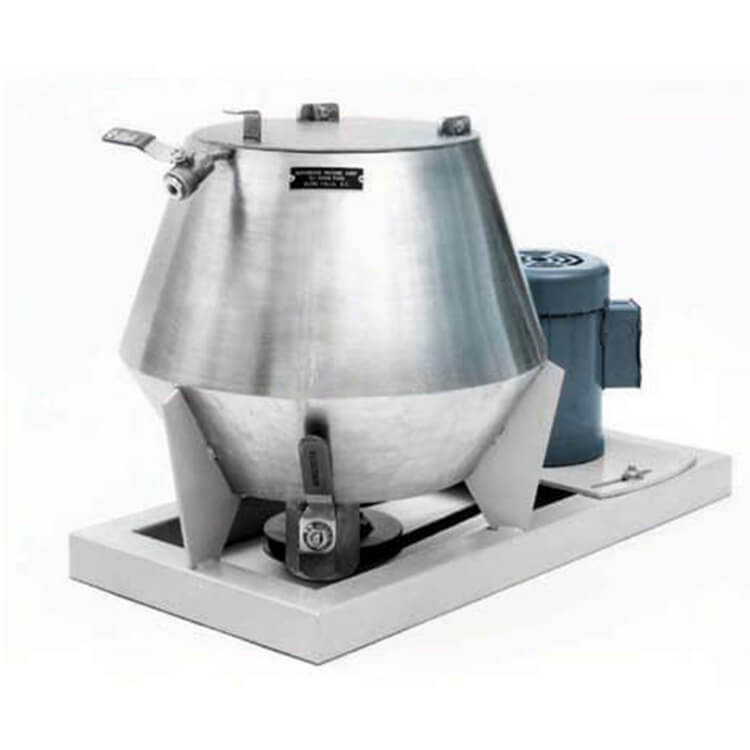

J-100 1800 Laboratory Pulper (J-100V):
The J-100 is ideal for defibering virgin or secondary fiber in 4 pound batch sizes. Designed for large commercial scale operations it is constructed of stainless steel throughout and has a motor that is 1 HP, 115/220 V, 50/60 Hz, 1 Phase TEFC and a V belt and pulley drive system (633 max rpm).  The pulper has a convenient rim mounted dilution/washout shower, stainless steel finger-spring type shaft seal, and permanently lubricated bronze rotor bearing and housing.  It has an optional variable speed motor control, and an external heating jacket with digital temperature control.

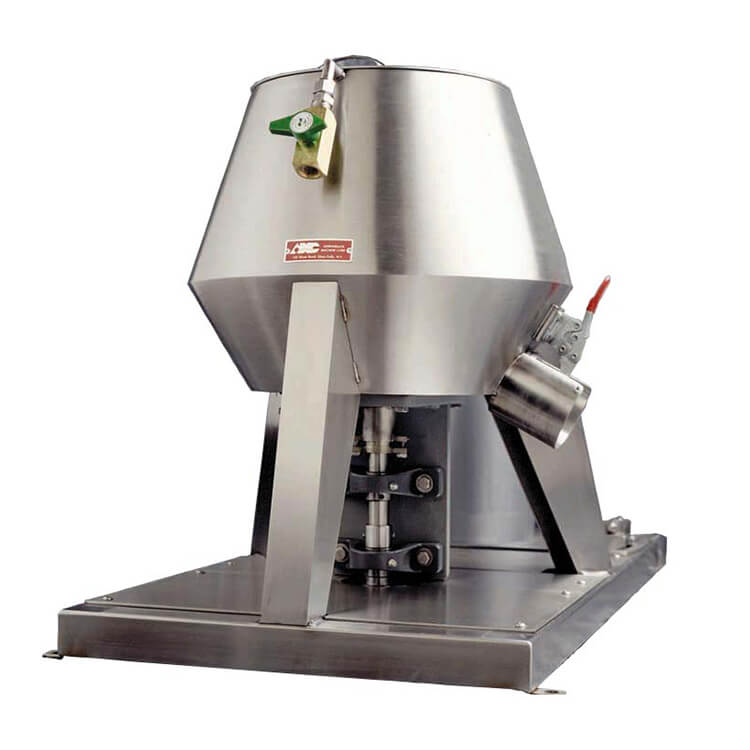

J-100H 1800 Laboratory Pulper (J-100HV):
The J-100H is designed for high consistency pulps to separate secondary fibers from contaminate bodies without excessive size reduction of the contaminates. Ideal pulper for use in de-inking and cleaning studies. Extremely durable, it is constructed of stainless steel throughout and has a motor that is 3 HP, 230/460 V, 50/60 Hz, 3 Phase TEFC and a gear belt and pulley drive system. The pulper has a convenient rim mounted dilution/washout shower, 1” pillow block shaft bearings & packing gland mounted 3/8” thick bracket. It has an optional variable speed motor control, and an external heating jacket with digital temperature control.

Additional information

Industry

Pulp

Testing Property

Evaluating secondary fiber processes, additives and quality

Downloads

Overview Brochure – Laboratory Pulpers
