Description
The TAS314 Wire Terminal Grips are ideal for measuring pull strength of wire terminals and connectors. They feature a self-aligning wheel with equally spaced slots for standard terminal shank sizes.
| Â |

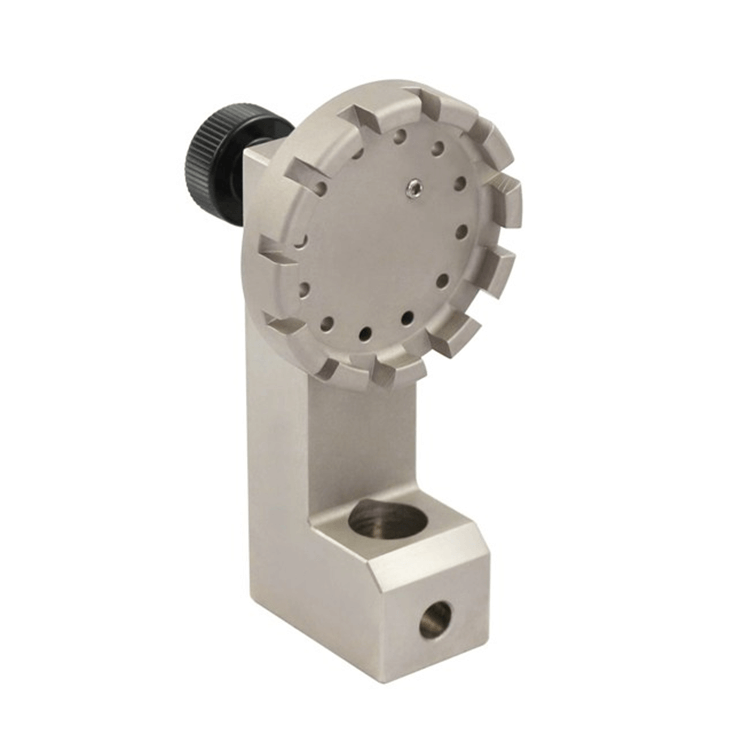

TAS314-60 |
|
Max. force capacity: |
20 kN |
|
12 slots: |
1 – 1.2 -1.6 – 2 – 2.4 – 2.7 – 3 – 4 – 4.5 – 5 – 5.5 – 6 [mm] |
|
Coupling: |
Af15.9 mm Further coupling sizes on request |
|
Body: |
Steel, nickel-plated |
|
Temperature range: |
0 to +70°C |
|
Weight: |
0.7 kg |
|
Scope of delivery: |
1 grip including locking pin |
|
|

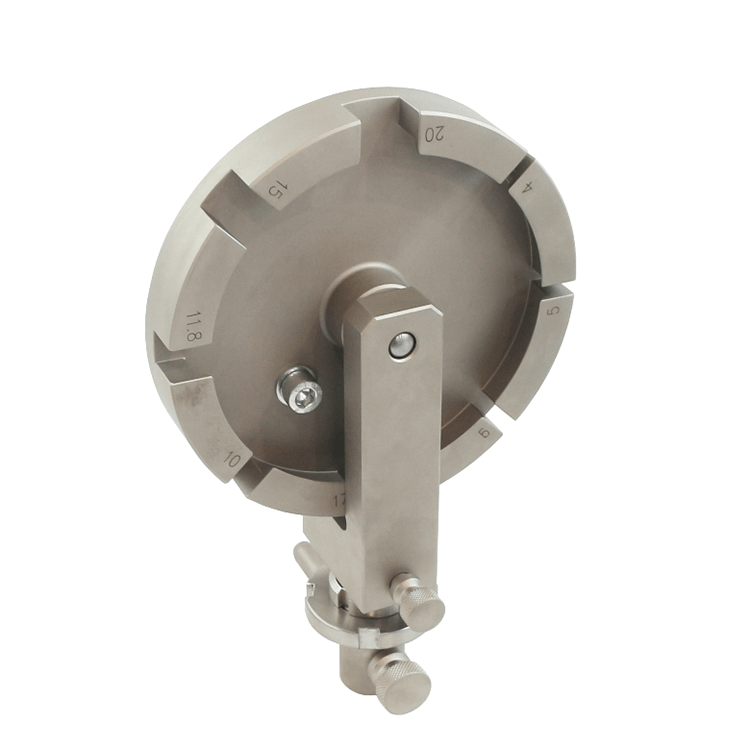

TAS314-150-S2 |
|
Max. force capacity: |
50 kN |
|
8 slots: |
2.6 – 3 – 4 – 5 – 6 – 8 -10 – 11.8 [mm] |
|
Coupling: |
Af15.9 mm Further coupling sizes on request |
|
Body: |
Nickel-plated steel |
|
Temperature range: |
-70 to 280°C |
|
Weight: |
2.9 kg |
|
Scope of delivery: |
1 grip including locking pin |
