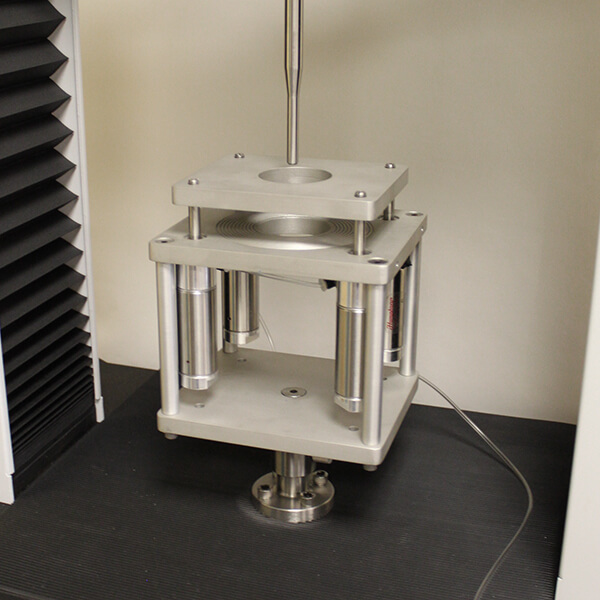

- Film Puncture Fixture, 200 N (20 kg, 45 lbf).
- Sample Type: Film, packaging material, laminates and other flexible material.
- Sample Clamp Test Diameter: 1.38” (35.05 mm)
- Sample Probe: .0125” ()3.2 mm) diameter hemispherical probe

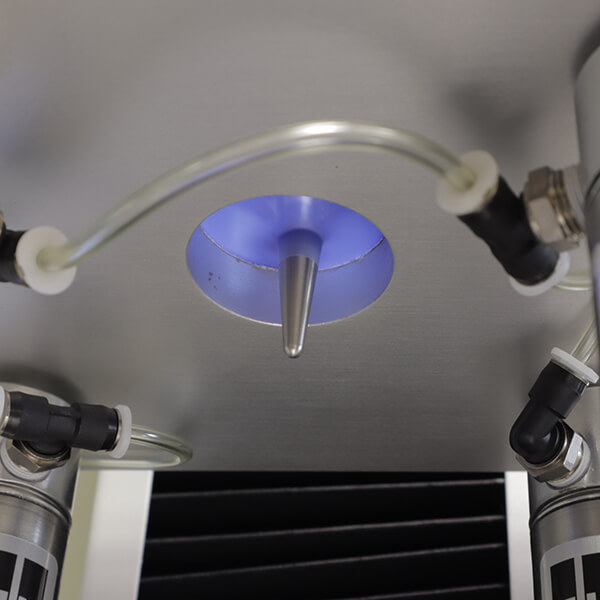

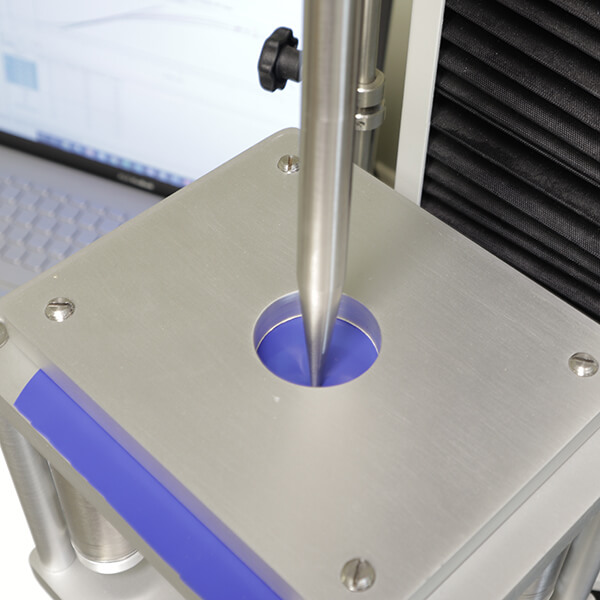

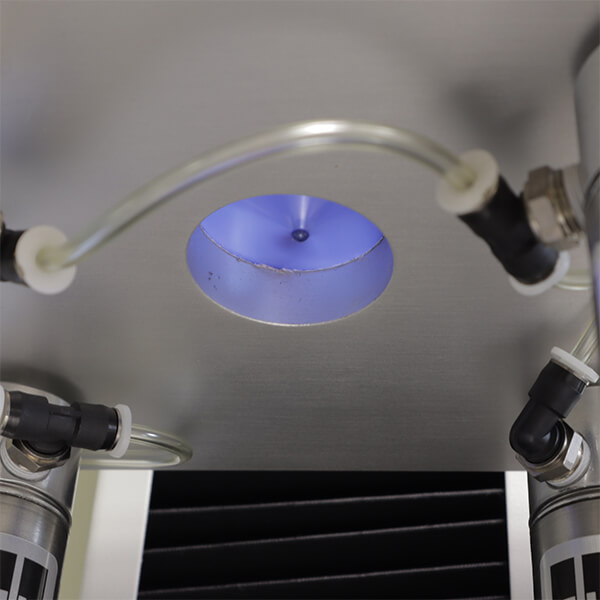

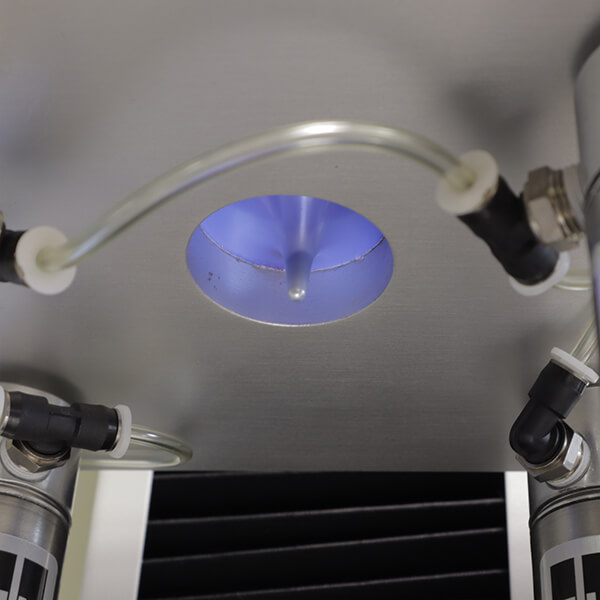

- Air operated (pneumatic) device provides an easy method for securing the test specimen. The top plate has a circular opening where the probe penetrates the sample.
- Configured to meet ASTM F 1306 – the Standard Test Method for Slow Rate Penetration Resistance of Flexible Barrier Films and Laminates.
