Coefficient of Friction Fixture (COF)

The 769-3000 fixture is used to measure coefficient of friction (COF).

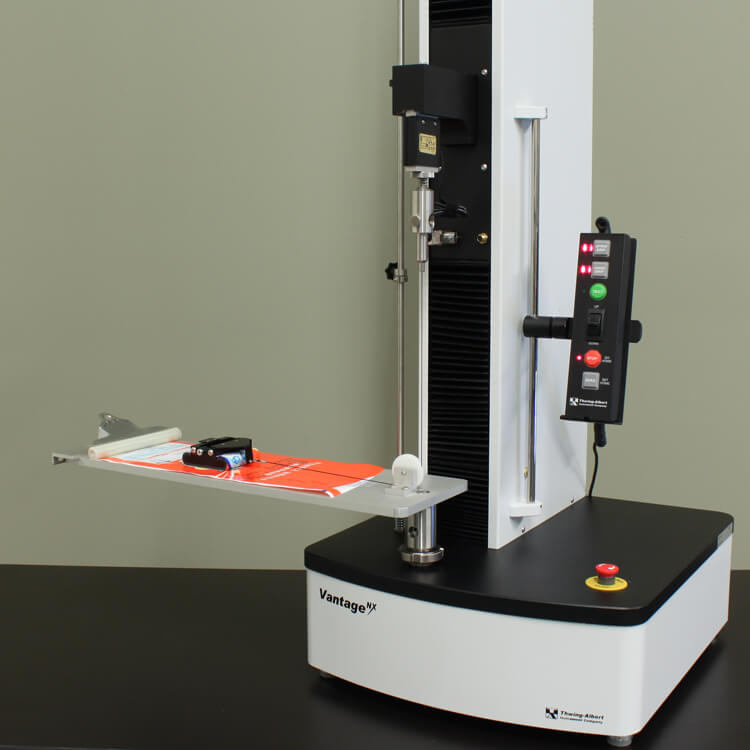

The 769-3000 Coefficient of Friction (COF) Fixture can be used with both the Vantage Series Tensile Testers and the QC-3A Universal Testing Machine to measure the static and kinetic friction of a material when sliding over itself.

Meet Industry Standards:  ASTM D1894, ASTM D4521, ISO 8295, TAPPI T549, TAPPI T816, and more.

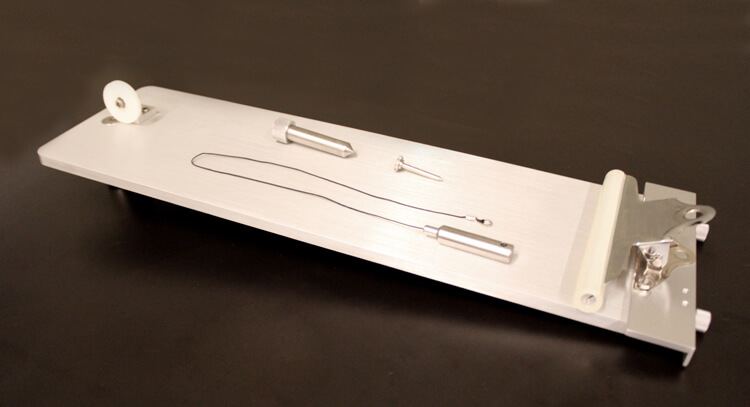

The fixture consists of a horizontal platform and grip adapter.

OF sled is required but must be ordered separately based on the testing needs.

COF Sled Options:
Coefficient Of Friction Sled Examples

00225-3050 – 200 Gram EZ-Sled with magnetic closure
00225-0218 – 200 Gram Sled (paper, paperboard, films)
02250-4400 – 200 Gram Sled (flexible packaging materials)
00225-0237 – 500 Gram Sled
02250-4600 – 500 Gram Sled (flexible packaging materials)
00225-0209 – 1000 Gram Sled
00225-0262 – 2000 Gram Sled
00225-0347 – 3 Pound Sled
02250-3111 – Self Adjusting 3-Ball Sled

A COF fixture is also available for the 1270 PCA Score Bend Tester – Part #1270-3009

Additional information

List of Standards

ASTM D1894, ASTM D4521, ISO 8295, TAPPI T549, TAPPI T816, and more.

Part Number


Pricing Note

COF Sled must be ordered separately.

Testing Property

COF, Coefficient of Friction


COF Fixture Overview

COF Sled Options
