Description

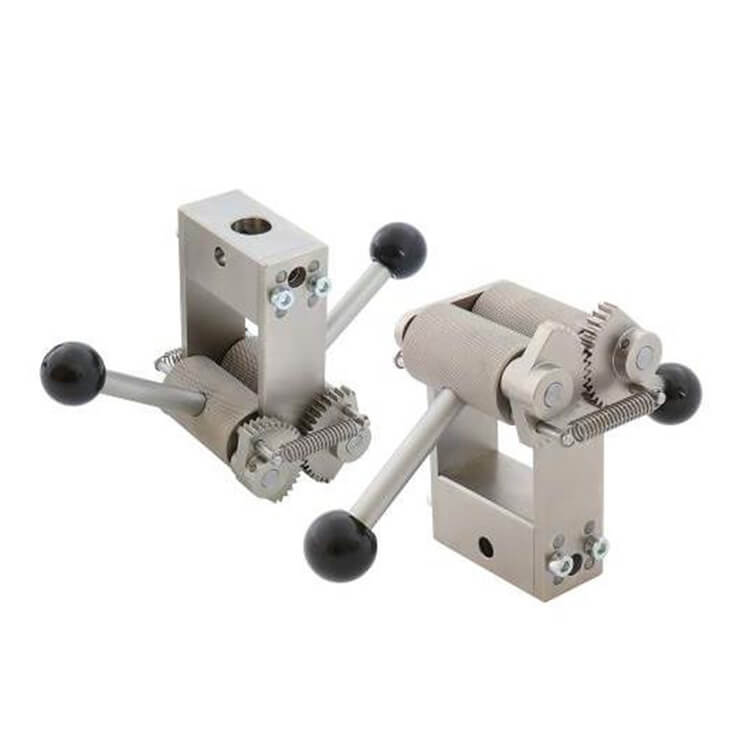

The TAS766 Eccentric Roller Grip features a symmetric design and self-tightening non-slip gripping action. Coupling with 2 pin holes allows the grip to be turned at 90° in a tensile machine.
- Tensile force: 5 kN
- Opening 0-15 mm
- Standard coupling: Af159 or Af20 Further couplings on request
- Roller: 30 mm Ø, 50 mm wide, pyramid (serrated)
- Body: Steel, nickel-plated
- Temperature range: 0° … +70°C Further temperature ranges on request
- Weight: 1.4 kg per grip
- Scope of delivery: 1 pair

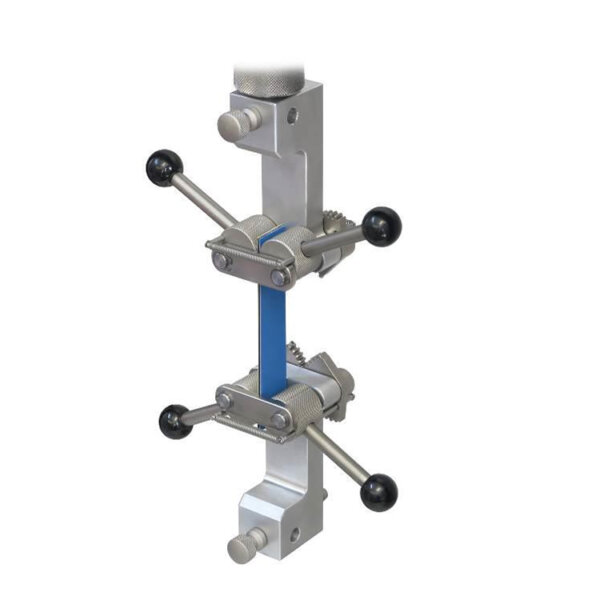

CUSTOM ECCENTRIC ROLLER GRIP OPTIONS
TAS766-1-BP-W20
-
Tensile force: 1 kN- Opening 0-10 mm
- Standard coupling: Af159
- Roller: 30 mm Ø, 50 mm wide, pyramid (serrated)
- Body: Steel, nickel-plated
- Temperature range: 0° … +70°C, Further temperature ranges on request
- Weight: 1.4 kg per grip
- Scope of delivery: 1 pair

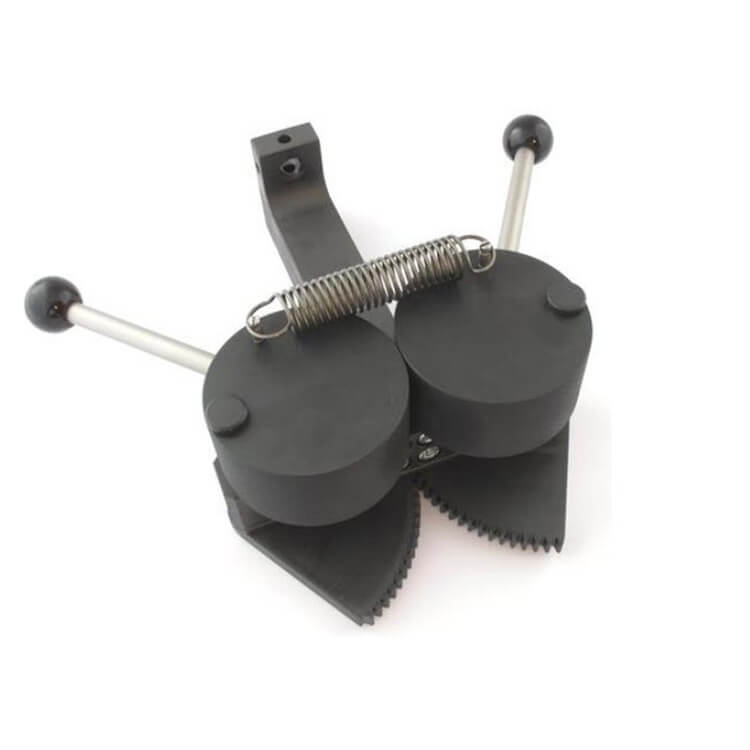

TAS766-40
-
Tensile force: 5 kN- Opening 0-40 mm
- Roller: 100 mm Ø, 50 mm wide, smooth
- Body: Steel
- Weight: 2 kg per grip
- Scope of delivery: 1 pair
