What is a CDV Vacuum Chamber?
The CDV Vacuum Chamber is a state-of-the-art instrument for leak testing of packages and simulation of atmospheric pressure variations. Designed for a wide range of industries and applications, the CDV Vacuum Chamber features an advanced control system and customizable test profiles to meet your specific needs. Compatible with all our control modules. Available in benchtop and floor stand models with multiple tank sizes and three controller options to match your application.
Features
- Visual leak detection allows easy identification of the failure point in your samples.
- Easy immersion testing equipped with an immersion grid, drainage system, and graduated water level scale.
- Safe-use lid with easy access with cylinder lift and hinges.
- Versatile and adaptable design for various industries and applications.
- Acrylic Vacuum Chamber available in 5 standard sizes + 2 sizes for CDV Pharma
- Integrated Venturi vacuum generator ensuring a reliable vacuum source.
- Electronic vacuum regulator allows programming of different vacuum levels, providing flexibility and repeatability.
- Quick-connect vacuum pump compatible, with optional pump available for full integration.
- Quick connectors for the vacuum port and sensor simplify setup and operation.
Requirements for Operation
- Electrical 100 – 240 V 50/60 Hz (CE Compliant)
-
Vacuum Source — Venturi (Included)
Ideal vacuum up to: –750 mbar at sea level
Maximum vacuum under optimal conditions: –800 mbar at sea level
Compressed air supply required: 185 L/min at 5 bar (6.5 CFM at 72 psi)Vacuum Source — Vacuum Pump (Optional)
Ideal vacuum up to: –900 mbar at sea level
Maximum vacuum under optimal conditions: –950 mbar at sea level
Control System Options for the DVACI CDV Leak Testers
Select the module that is right for your testing needs and requirements. Three options are available, one manual and two electronic control system options. All are compact and integrate easily with your CDV Chamber for intuitive operation. The CDV 3 and CDV 4 models are designed to house the control system directly beneath the chamber, saving valuable workspace. Each system is also built for easy maintenance, allowing individual components to be replaced or repaired as needed to minimize downtime.
 |
Module M – Manual Control System Module M is the ideal solution for those seeking a manual, reliable, and easy-to-operate control system for vacuum leak testing. Its mechanical configuration allows direct adjustment of the vacuum and visual monitoring via an integrated pressure gauge, offering a practical and accessible alternative for basic and occasional applications. This can be compatible with any Vacuum Chamber not just DVACI. |
|
Module S – Simplified Control System Module S is a reliable, easy-to-use, and cost-effective electronic control system for the CDV Chamber. Designed with user-friendly Start and Stop buttons and a timer for precise cycle control, it delivers accurate and repeatable results through an advanced digital regulator with an adjustable vacuum setpoint. An ideal choice for single test procedures, occasional use, and budget-conscious operations that still require standards compliance. |
 |
Module P – Electronic Control System Module P is the most advanced control system option, offering full versatility and customization through the ORION OS touchscreen interface. Compatible with a wide range of test methods — including Transport, Pharmaceutical, Internal Pressure, and Multi-Cycle Testing — it supports two-level user access for secure data management in compliance with CFR 21 Part 11. Like a smartphone, Module P accepts application updates and integrates seamlessly with optional accessories such as thermal printers and barcode readers. |
Meet Industry Standard Methods for Quality Testing to Detect Packaging Leaks
- ASTM D3078 Flexible Packaging Leak Test
- ASTM F2096 Bubble Leak Test
Optional pressurization kit available to inject compressed air for precise leak detection.
This kit includes a needle kit, seal pads, and a regulator for integrity tests.
- ASTM D6653 Transportation Test
- ASTM D5094 Rigid Container with Liquids
- ASTM D4991 Empty Rigid Container
Pharma Standards – Specialized CDV Chambers are available to testing pharmaceutical packaging for leaks meeting top quality standards.
- USP <381>, USP <1207.2>
- Eur. Ph. 3.2.9
- JP 7.03
- ISO 8871-5
- MGA 0486 (FEUM)
Select the Ideal Vacuum Chamber Configuration for Your Testing
5 Vacuum Chamber Standard Sizes with 2 Categories – Bench Top & Floor Stand

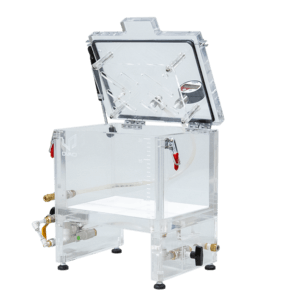

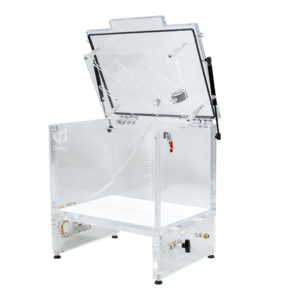

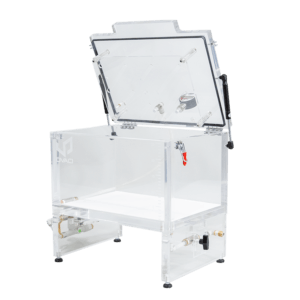

| CDV2 | CDV3 | CDV4 | |
 |
 |
 |
|
| Internal Dimensions (L x W x H) |
280 x 200 × 200 mm 11” x 8” x 8” |
450 × 300 × 250 mm 18” x 12” x 10” |
500 × 350 × 350 mm 20” x 14” x 14” |
| Total Dimensions (L x W x H) |
330 × 320 × 380 mm 13” x 13” x 15” |
500 × 420 × 430 mm 20” x 16” x 17” |
580 × 500 × 500 mm 23” x 20” x 20” |
| Acrylic Thickness | 30 mm | 30 mm | 30 mm |
| Chamber Weight | 19 kg | 38 kg | 42 kg |
| Maximum Vacuum | -950 mbar | -950 mbar | -750 mbar |

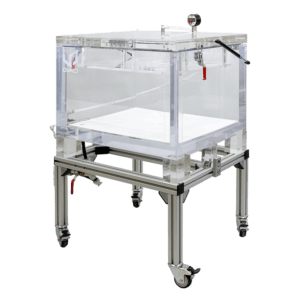

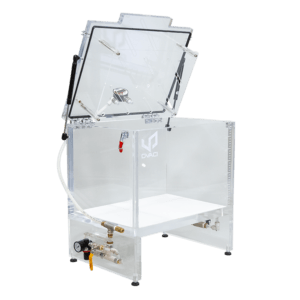

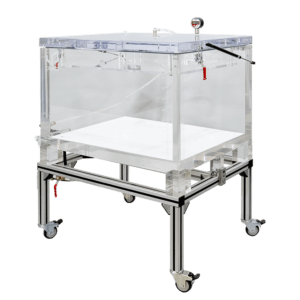

| CDV4+ | CDV5 | CDV6 | |
 |
 |
 |
|
| Internal Dimensions (L x W x H) |
500 × 350 × 350 mm 20” x 14” x 14” |
600 × 500 × 400 mm 24”x 20” x 16” |
800 × 600 × 500 mm 31”x 24” x 20” |
| Total Dimensions (L x W x H) |
580 × 500 × 500 mm 23” x 20” x 20” |
690 × 780 × 890 mm 27”x 31” x 35” |
890 × 880 × 990 mm 35” x 35” x 39” |
| Acrylic Thickness | 50 mm | 50 mm | 50 mm |
| Chamber Weight | 70 kg | 105 kg | 175 kg |
| Maximum Vacuum | -950 mbar | -950 mbar | -750 mbar |
Also Available: DVACI CDV Pharma for Pharmaceutical Applications
