Description

What is a CDV Vacuum Chamber?

The CDV Vacuum Chamber is a state-of-the-art instrument for packaging leak testing and atmospheric pressure variation simulation. Designed for a wide range of industries and applications, the CDV Vacuum Chamber features an advanced control system and customized test profiles to meet your specific needs.

Features

• Visual Detection of Leaks allows to easily identify the point of failure of your samples.
• Easy Immersion Testing equipped with a immersion grid, a draining system and a graduated ruler for water level.
• Lid designed for risk-free, easy access with cylinder lift and hinges.
• Versatile and adaptable design for various industries and applications.
• Acrylic Vacuum Chamber available in 5 standard sizes + 2 sizes for CDV Pharma
• Integrated venturi vacuum generator guarantees a reliable vacuum source.

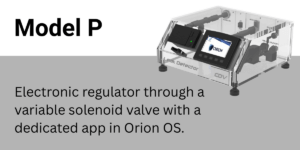

• Electronic vacuum regulator allows programming of different vacuum levels, offering flexibility and repeatability for various processes.
• Ready-to-plug vacuum pump compatibility, with an optional pump available for seamless integration.
• Quick connector vacuum and sensor outlet simplifies setup and operation.

Meet Industry Standard Methods for Quality Testing to Evaluate Packaging Leaks

• ASTM D3078 Flexible Packaging Leak Test
• ASTM F2096 Bubble Leak Test
  Optional pressurization kit available to inject compressed air for precise leak detection.
  This kit includes a needle kit, seal pads, and a regulator for integrity tests.

• ASTM D6653 Transportation Test
• ASTM D5094 Rigid Container with Liquids
• ASTM D4991 Empty Rigid Container

Pharma Standards:

• USP <381>, USP <1207.2>
• Eur. Ph. 3.2.9
• JP 7.03
• ISO 8871-5
• MGA 0486 (FEUM)

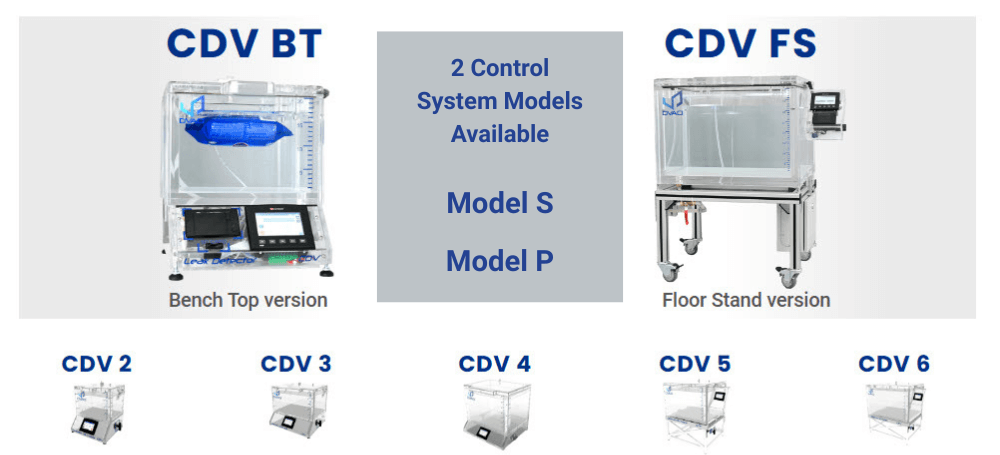

5 Vacuum Chamber Standard Sizes with 2 Categories – Bench Top & Floor Stand:
