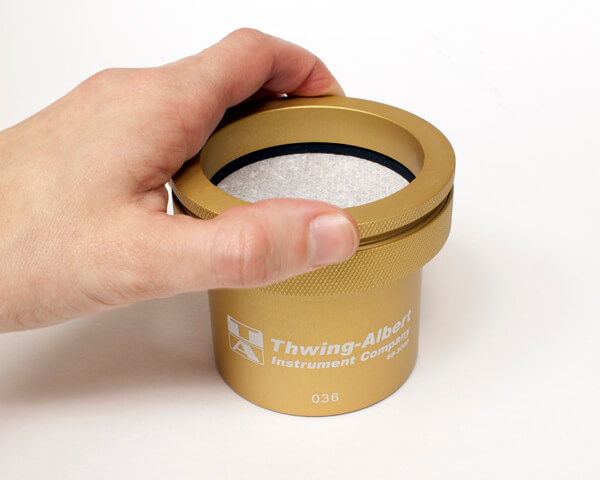

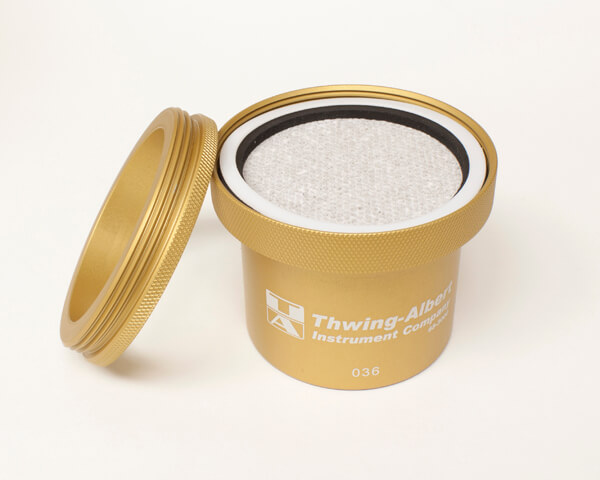

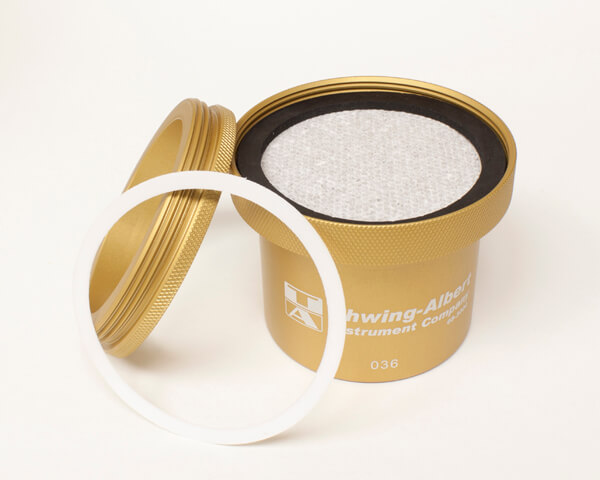

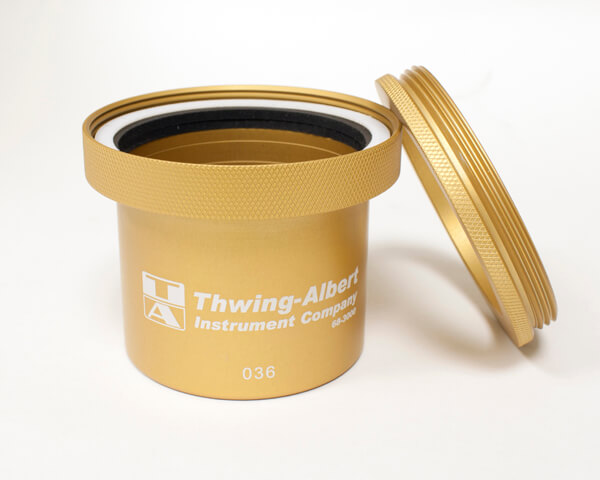

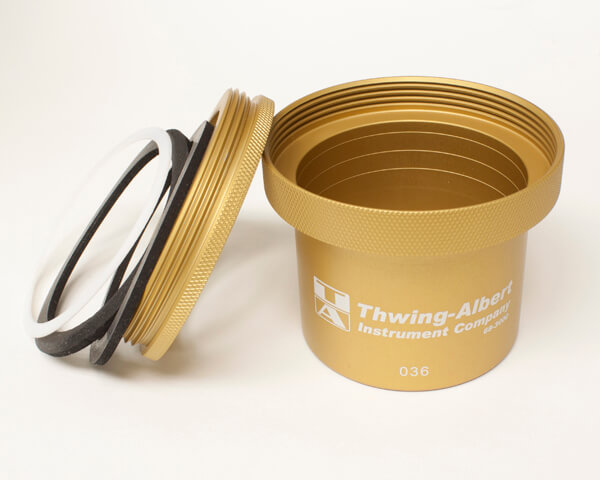

The 68-3000 EZ-Cup Vapometer is used to measure water vapor permeability. The Vapometer consists of a light weight aluminum cup and an aluminum threaded flanged ring with two neoprene gaskets with a Teflon seal that hold the specimen in place. This design was specifically created to eliminate edge leakage and to provide fast secure sealing of the specimen between the gaskets. Specimens are easily loaded and sealed in place by twisting the threaded upper aluminum flange in place. No More Individual Screws to Tighten!
- Secure Samples in Half the Time.
- Reduce Operator Time – Increase Productivity.
- Serialized to Keep Track of Multiple Samples.
Complies with ASTM E96
Test samples up to 3 mm (1/8 in.) thick
Diameter: 63.5 mm (2.5 in.)
Depth: 50.8 mm (2.0 in.) Weight: 150 grams
Part #68-3000 – 2” depth
Part #68-3002 – 3/4” depth
Part #68-3003 – 1/2” depth
Part #68-3014 – SAE J2665 (2″ depth)
Accurate samples for the Vapometer (2.9375 in. dia.) can be quickly prepared using a Circular Steel Die (2.9375 in. dia.) with the 240-7B Alfa Cutter.
