Descripción

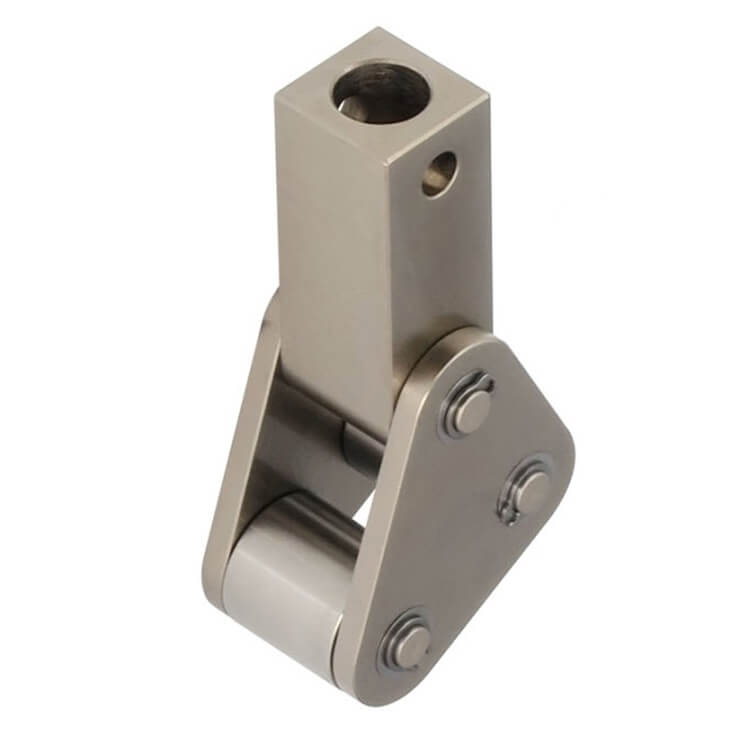

The TA105 Peel Test Fixture is used for testing resistance of adhesive bonds according to ASTM D3167, DIN 53289, EN 1464, ISO 4578.
|
TA105-10kN Roller Peel Fixture |
|
|
Max. load: |
10 kN |
|
Coupling: |
Af159. Further coupling sizes possible with additional adapter |
|
Body: |
Steel, nickel-plated |
|
Temperature range: |
0 … +70°C |
|
Scope of delivery: |
1 Fixture Additional lower grip is required |
|
TA105-D254-B254 Peel Test Fixture for Testing Floating Roller Peel Resistance of Adhesives according to ASTM D3167 |
|
|
Roller diameter: |
25.4 mm (1 in.) |
|
Roller width: |
25.4 mm (1 in.) |
|
Weight: |
0.68 kg |
|
TA105-D25-830 Peel Test Fixture for Testing Floating Roller Peel Resistance of Adhesives according to DIN 53289, EN 1464, EN2243-2, ISO 4578 |
|
|
Roller diameter: |
25 mm |
|
Roller width: |
30 mm |
|
Weight: |
0.60 kg |
