Descripción
TA56g are supplied in pairs but can also be ordered as single grip (0.5 pair). Grips and jaws (1 set = 4 jaws) need to be ordered separately. Jaws with other dimensions and surface coatings on request.

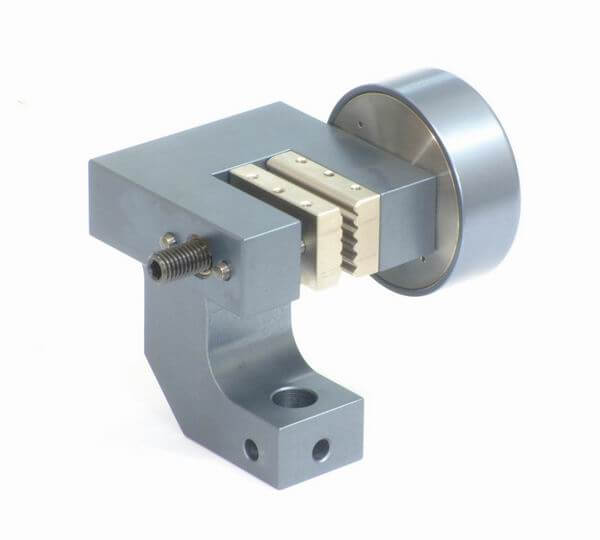

TA56g+Ko (1 pneumatic piston)
- Clamping force: 2.6 kN
- Temperature range* 0°C to +70°C
other temperature ranges upon request. - Min. specimen length: 85 mm
- Max. specimen width: 50 mm
- Body: Aluminum
- Pneumatic connection: M5
- Weight: 1.5 kg
TA56g+2Ko (2 pneumatic pistons)
- Clamping force: 2.6 kN
- Temperature range* 0°C to +70°C
other temperature ranges upon request. - Min. specimen length: 120 mm
- Max. specimen width: 50 mm
- Body: Aluminum
- Pneumatic connection: M5
- Weight: 1.85kg
Extended height grip options are available – TA56g-H200 Extended Height Grips offer the ability to place longer samples with out the need to be cut down. Available with 1 or 2 pneumatic pistons.
Also available as mechanical vice grip TA56g
