TA175 Pneumatic Wedge Grips are available with load capacity of 10, 20, 50, 100 and 300 kN
These wedge grips offer self-aligning centric jaw movement, and a self-intensifying clamping system to hold a sample securely in place.
Ideal for complicated samples with low coefficient of friction such as hard steel foils, plastic or rubber with fibers.
Can be supplied with pull rods of different lengths for use in temperature chambers
Temperature Range: -70° to +300°C temperature range possible with special sealings on request.

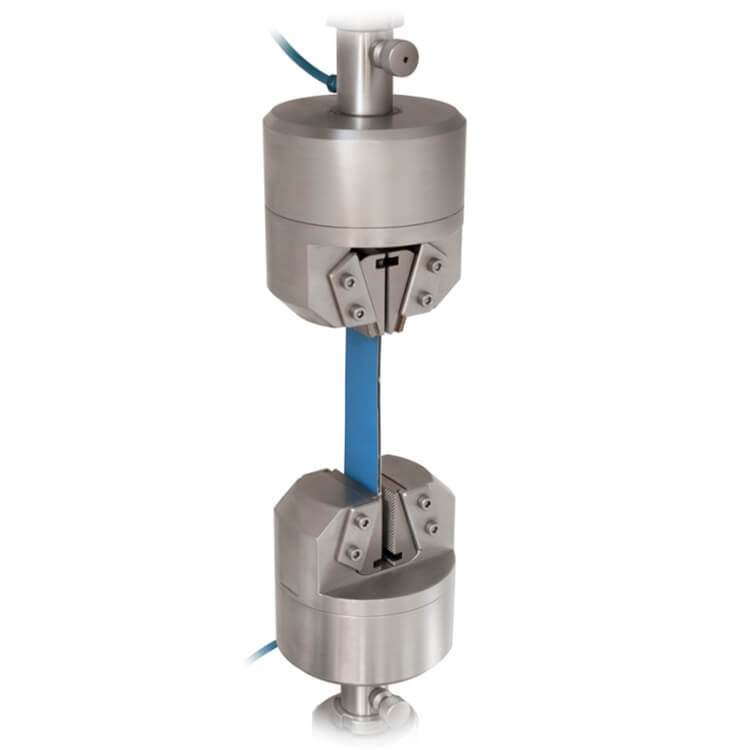

TA175-10 Pneumatic Wedge Grip
| Load | 10 kN |
| Clamping Force |
20 kN at 7 bar and 10 kN tension |
| Jaw Clamping Surface | 33×40 mm (height x width) |
| Standard Temperature Range | -70° to 280°C |
| Standard Coupling | Af159 or Af20 (Further couplings on request) |
| Body | Stainless Steel |
| Jaws | Hardened steel 58 HRC |
| Weight per Grip | 2.8 kg |
| Scope of Delivery | 1 pair of grips without jaws |
TA175-20 Pneumatic Wedge Grip
| Load | 20 kN |
| Clamping Force |
43 kN at 7 bar and 20 kN load |
| Jaw Clamping Surface | 50×60 mm (height x width) |
| Standard Temperature Range | 0° to +180°C (Further ranges on request) |
| Standard Coupling | Af159 or Af20 (Further couplings on request) |
| Body | Steel, nickel-plated |
| Jaws | Hardened steel 58 HRC |
| Weight per Grip | 8.9 kg |
| Scope of Delivery | 1 pair of grips without jaws |
TA175-20 Pneumatic Wedge Grip
| Load | 20 kN |
| Clamping Force |
43 kN at 7 bar and 20 kN load |
| Jaw Clamping Surface | 50×60 mm (height x width) |
| Standard Temperature Range | 0° to +180°C (Further ranges on request) |
| Standard Coupling | Af159 or Af20 (Further couplings on request) |
| Body | Steel, nickel-plated |
| Jaws | Hardened steel 58 HRC |
| Weight per Grip | 8.9 kg |
| Scope of Delivery | 1 pair of grips without jaws |
See Downloads tab for the brochure featuring specifications on all available models for 10, 20, 50, 100 and 300 kN
