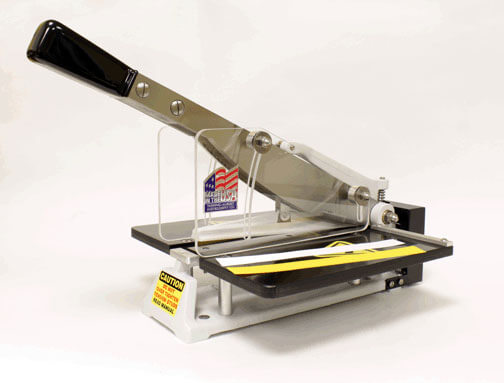

JDC Cutter (1″ x 16″)

The JDC 16″ cutters can be configured to cut samples from 1/8″ to 3″ wide and up to 16″ in length.
IMPORTANT – when requesting a quote please specify what width you require from 1/8″ to 3″.

Descripción

The JDC 16″ cutters can be configured to cut samples from 1/8″ to 3″ wide and up to 16″ in length.

Dual-blade cutting action gives you clean, accurate cuts for paper, paperboard, plastic, film, rubber, textiles, nonwovens, metal foils and other sheet materials. The JDC is recognized worldwide as the industry standard for materials testing sample preparation.  The JDC-1″-10″  is our most popular model, but other popular sizes are as follows:  JDC-15mm-10″, JDC-.5″-10″, JDC-25mm-10″, JDC-2″-10″, JDC-3″-10″, JDC-1″-12″, JDC-3″-12″, and  JDC-1″-16″.  Other sizes are available and custom sized cutters are available upon request.

The JDC has become the accepted standard for most corporations worldwide for preparing samples of paper, paperboard, metal foils, nonwovens, films, tissue and a variety of other materials. Lightweight and portable, the JDC can also be anchored via the cast iron base for added stability and operator safety. Shields are provided to ensure safety as well.

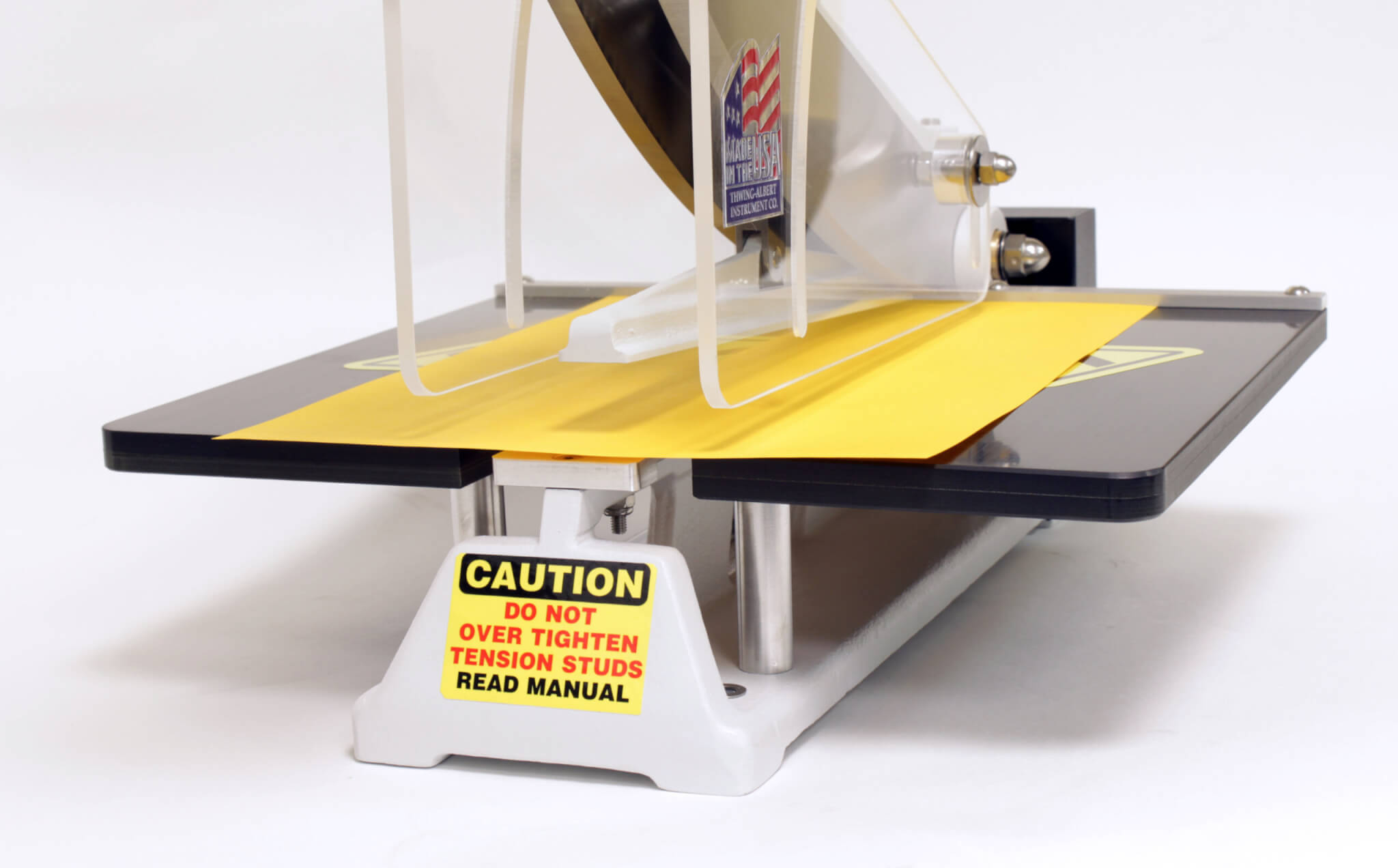

The JDC cuts test strips to an exact width and parallel throughout their entire length. The positive cutting action of the dual blades and precision ground base shear cut both sides of the sample at once assuring you of a clean, accurate cut every time. The cutting blades are made of a special tool steel which is stress-relieved by cycling between cold and hot temperatures to prevent the blades from warping.

The JDC cutter is designed to last for many years and a reconditioning service is available that provides the capabilities of a brand new cutter for half the cost. Reconditioning includes regrinding the cutting blades and providing a new base shear.

All 10″ models are now available with the new base style.

Información adicional

Cutting Specification

1" (25.4mm) Fixed Width and 10" (254mm) Length

Industry

Adhesives, Corrugated, Foils/Metals, Food Testing, Medical, Packaging, Paper, Paperboard, Plastic Film, Pulp, Tissue, Textiles

Model Name

JDC 16"

Parallelism

+0.001 in/-0 in (+.0254 mm/-0 mm)

Testing Property

Sample Preparation

Descargas

JDC 16″ Cutter
